: PP-5393854439-2

: Available

: Evergreen

$350.99

Shipping calculated at checkout.
Piston Ring Sizes
Main and Rod Bearing Sizes

Remark: This kit include the valley pan gaskets for engines with Active Fuel Management (AFM.) system, and without Active Fuel Management (AFM). However the plastic AFM valley pan gasket in this set only use to replace the perimeter seal only. This kit DOES NOT INCLUDE the complete valley pan gasket that use to service Displacement-On-Demand solenoids. For 2004 engines there are two different designs for the head bolts. 1st design head bolts have 16 Long Bolts: 150mm, 4 Short Bolts: 100mm, 10 Small Bolts: 45mm. 2nd design head bolts have 20 Long Bolts: 100mm, 10 Small Bolts: 45mm. This kit ONLY FITS engine with 1ST DESIGN HEAD BOLTS (16 long bolts: 145mm, 4 short bolts : 100mm, 10 small bolts: 46mm). Please double check your engine head bolts to make sure this kit will fit your engine before making the purchase.

Engine Re-Ring Kit Fit 02-04 GM Chevy 4.8 5.3 LS1 V8 OHV VIN P T V. Restore your engine's performance with our comprehensive Engine Re-Ring Kit, meticulously designed to refresh and rejuvenate worn-out components. This all-in-one kit includes high-quality piston rings, rod bearings, and main bearings to ensure a reliable seal and optimal engine function. Engineered for precision, our components are made from premium materials that offer superior wear resistance, heat tolerance, and long-lasting durability, even under the most demanding conditions.

Features:

  • Includes piston rings, rod bearings, and main bearings, providing a full set of essential components needed for a comprehensive engine refresh.
  • Ensures a perfect seal, improving compression, minimizing oil consumption, and restoring engine efficiency for better performance.
  • Constructed from high-strength materials to withstand high pressure and temperature, reducing wear and extending the lifespan of your engine components.
  • Helps restore lost power and fuel efficiency by reducing blow-by gases and maintaining optimal combustion chamber pressure.
  • Designed to match OEM specifications for a seamless fit, simplifying the installation process for both experienced mechanics and DIY enthusiasts.
  • Suitable for a wide range of engine models; check our detailed fitment guide to ensure proper compatibility with your specific vehicle.

Fits Following Models:

2004 BUICK RAINIER 5.3L 323CID V8 OHV, (16 VALVE), VIN CODE "P"
2004 CADILLAC ESCALADE 5.3L 325CID V8 OHV, (16 VALVE), VIN CODE "T"
2004 CHEVROLET AVALANCHE 1500 5.3L 323CID V8 OHV, (16 VALVE), VIN CODE "T"
2004 CHEVROLET EXPRESS 1500 5.3L 323CID V8 OHV, (16 VALVE), VIN CODE "P, T"
2004 CHEVROLET EXPRESS 2500 4.8L 294CID V8 OHV, (16 VALVE), VIN CODE "V"
2004 CHEVROLET EXPRESS 2500 5.3L 323CID V8 OHV, (16 VALVE), VIN CODE "P, T"
2004 CHEVROLET SILVERADO 1500 4.8L 294CID V8 OHV, (16 VALVE), VIN CODE "V"
2004 CHEVROLET SILVERADO 1500 5.3L 323CID V8 ELECTRIC/GAS OHV, (16 VALVE), VIN CODE "T"
2002-2004 CHEVROLET SILVERADO 1500 5.3L 323CID V8 FLEX OHV, (16 VALVE), VIN CODE "Z"
2002-2004 CHEVROLET SILVERADO 1500 5.3L 323CID V8 OHV, (16 VALVE), VIN CODE "T"
2004 CHEVROLET SSR 5.3L 325CID V8 OHV, (16 VALVE), VIN CODE "P"
2002-2004 CHEVROLET SUBURBAN 1500 5.3L 323CID V8 FLEX OHV, (16 VALVE), VIN CODE "Z"
2002-2004 CHEVROLET SUBURBAN 1500 5.3L 323CID V8 OHV, (16 VALVE), VIN CODE "P, T"
2004 CHEVROLET TAHOE 4.8L 294CID V8 OHV, (16 VALVE), VIN CODE "V"
2002-2004 CHEVROLET TAHOE 5.3L 323CID V8 FLEX OHV, (16 VALVE), VIN CODE "Z"
2002-2004 CHEVROLET TAHOE 5.3L 323CID V8 OHV, (16 VALVE), VIN CODE "T"
2004 CHEVROLET TRAILBLAZER 5.3L 325CID V8 OHV, (16 VALVE), VIN CODE "P"
2004 GMC ENVOY 5.3L 323CID V8 OHV, (16 VALVE), VIN CODE "P"
2004 GMC SAVANA 1500 5.3L 323CID V8 OHV, (16 VALVE), VIN CODE "P, T"
2004 GMC SAVANA 2500 4.8L 294CID V8 OHV, (16 VALVE), VIN CODE "V"
2004 GMC SAVANA 2500 5.3L 323CID V8 OHV, (16 VALVE), VIN CODE "P, T"
2004 GMC SIERRA 1500 4.8L 294CID V8 OHV, (16 VALVE), VIN CODE "V"
2002-2004 GMC SIERRA 1500 5.3L 323CID V8 FLEX OHV, (16 VALVE), VIN CODE "Z"
2002-2004 GMC SIERRA 1500 5.3L 323CID V8 OHV, (16 VALVE), VIN CODE "T"
2002-2004 GMC YUKON XL 1500 5.3L 323CID V8 FLEX OHV, (16 VALVE), VIN CODE "Z"
2002-2004 GMC YUKON XL 1500 5.3L 323CID V8 OHV, (16 VALVE), VIN CODE "T"
2004 GMC YUKON 4.8L 294CID V8 OHV, (16 VALVE), VIN CODE "V"
2002-2004 GMC YUKON 5.3L 323CID V8 FLEX OHV, (16 VALVE), VIN CODE "Z"
2002-2004 GMC YUKON 5.3L 323CID V8 OHV, (16 VALVE), VIN CODE "T"
2004 ISUZU ASCENDER 5.3L 323CID V8 OHV, (16 VALVE), VIN CODE "P"

This item includes:

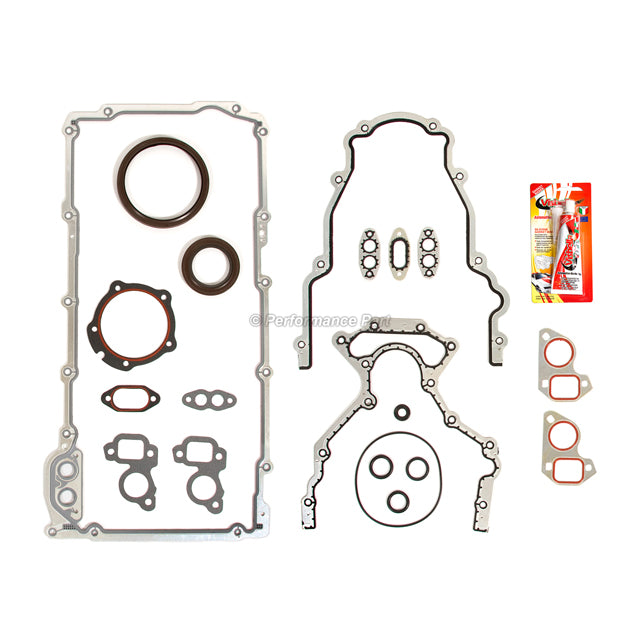

  • Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Other Small Gaskets, ..., Lower Gasket Set)

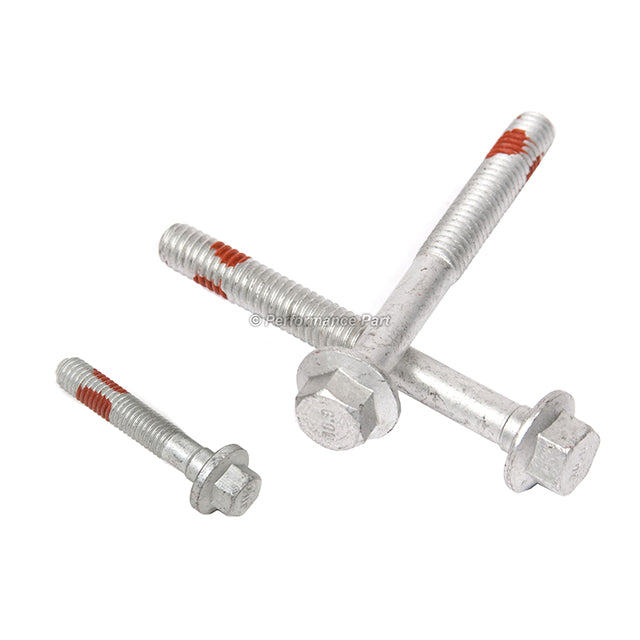

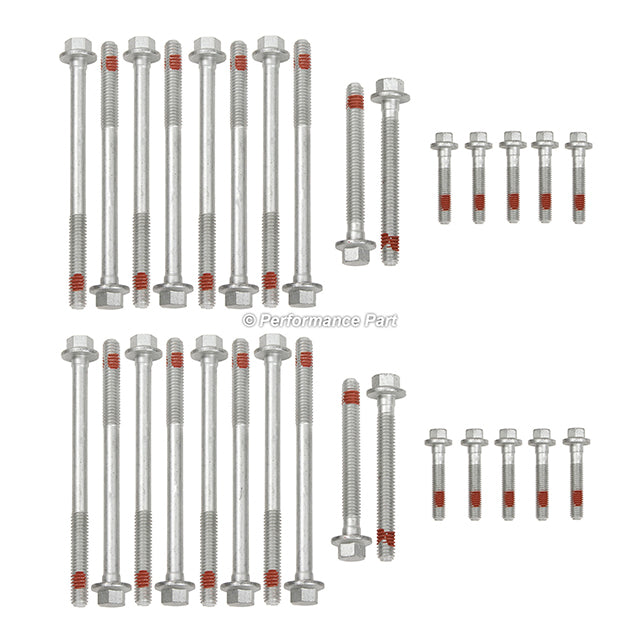

  • 30 Cylinder Head Bolts (16 Long Bolts: 150mm, 4 Short Bolts: 100mm, 10 Small Bolts: 45mm)

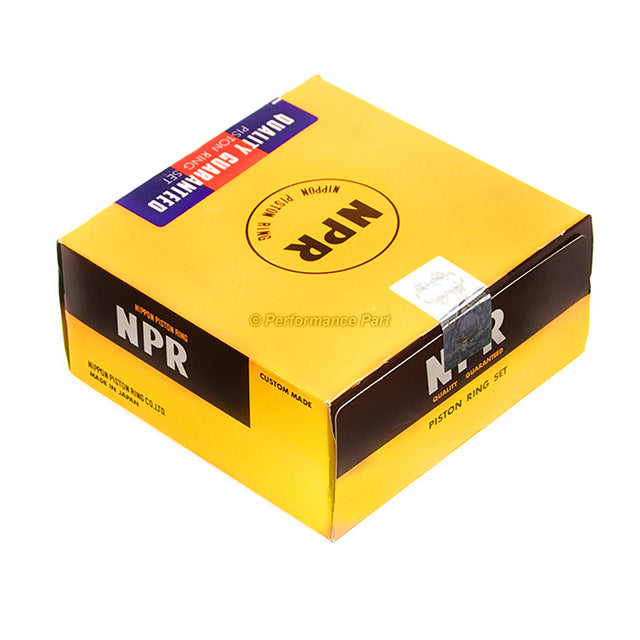

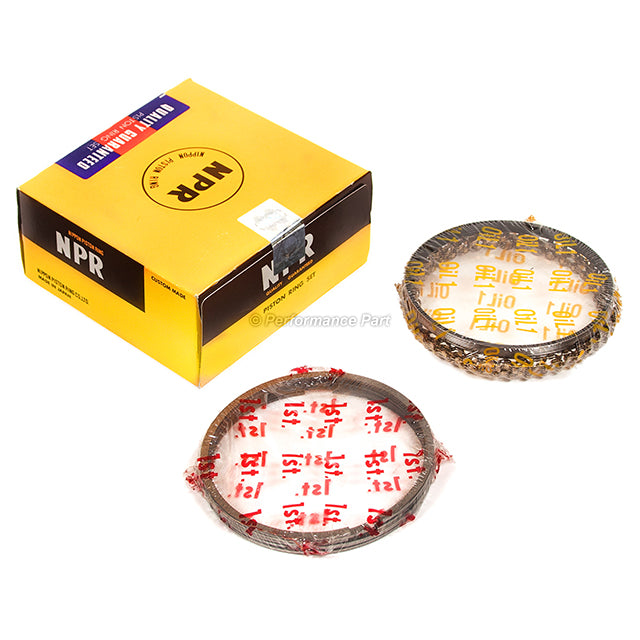

  • Complete NPR Piston Ring Set (Sizes available: see option above)
    • Standard Bore Diameter: 81.00mm
    • 1st Group: 1.00mm
    • 2nd Group: 1.20mm
    • Oil Ring: 2.80mm

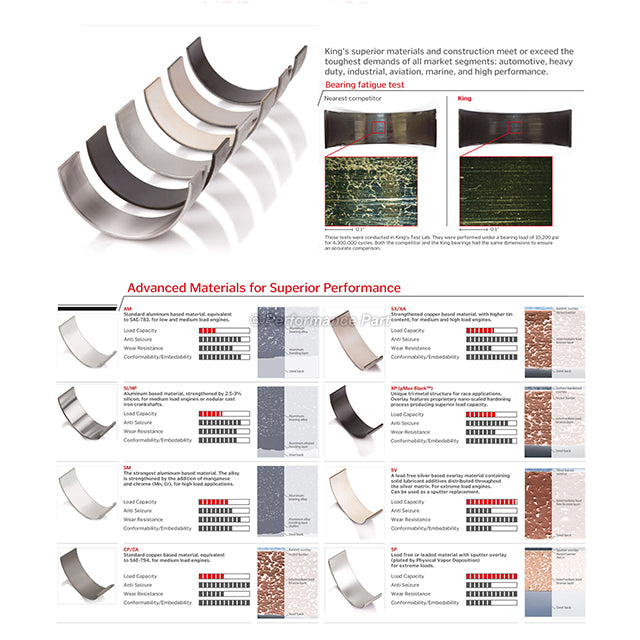

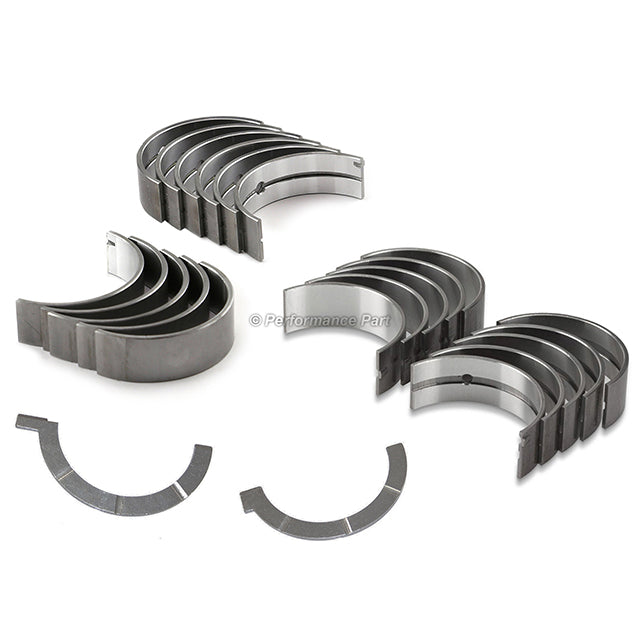

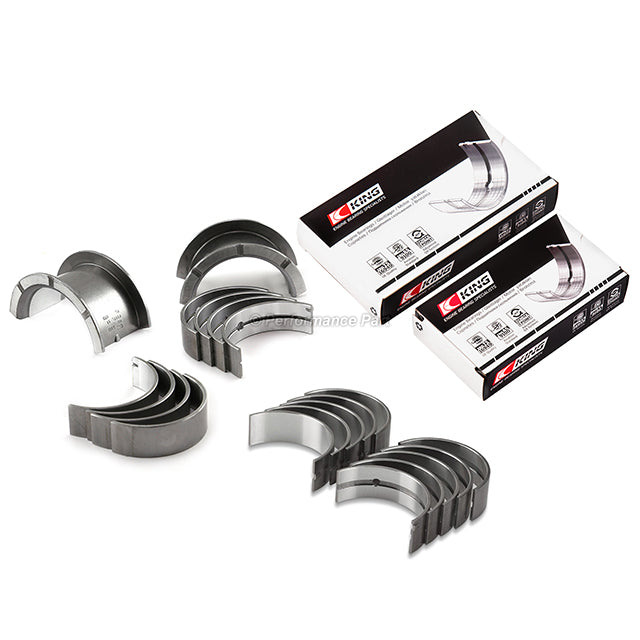

  • King Main Bearing Set (Sizes available: see option above)
  • King Rod Bearing Set (Sizes available: see option above)

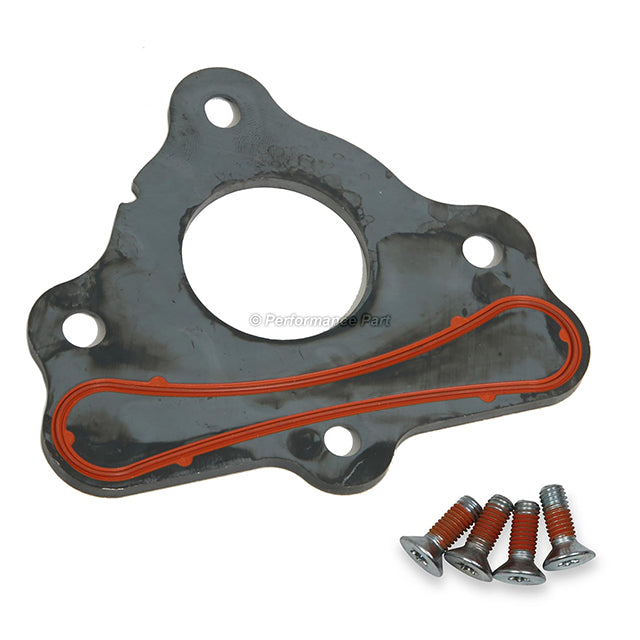

  • 1 Camshaft Retainer Thrust Plate w/ Bolts
  • 1 Oil Galley Plug Barbell
Part Numbers: 8-10448LET, 6-10448, SL1000, HB10448E, 12589016, 12573460, SWG10005, MB5293SI, CR807SI

Evergreen Auto Parts and Components Inc stands tall as a beacon of quality and reliability within the automotive industry. With a legacy built on years of seasoned expertise and an unwavering dedication to excellence, we proudly present gasket sets that embody trust and durability. When it comes to your engine, trust in Evergreen to deliver the performance it deserves. Prepare your engine for a journey of success with the Evergreen Conversion/Lower Gasket Set. Engineered with precision and crafted with care, our gasket sets promise complete sealing, unmatched durability, and seamless compatibility. Backed by the esteemed reputation of Evergreen, you can rest assured that your engine is in capable hands. Elevate your engine rebuilds or conversions today and drive with confidence knowing that you've chosen Evergreen. Don't settle for less when it comes to the heart of your vehicle. Order now and experience the quality and reliability that countless automotive enthusiasts have come to rely on.

  • Performance Part offers a Limited Warranty to entire products to be free from defects in workmanship and material under normal service conditions for a period of 90 days whichever occurs from the original date of delivery of the good.
  • The warranty is not transferable, is valid to the original purchaser, and is limited to the replacement of defective products only.
  • This Limited Warranty does not cover labor, damage from accidents, alterations, misuse, or modifications not intended by the manufacturer, and other expenses such as towing loading fluids, oils, or car rentals.
  • All warranty claims must be pre-authorized and returned prepaid to Performance Part for inspection and approval.
  • No exchanges will be made for any product that has been damaged, misused, or improperly installed. We always recommend professional installation of our products.
  • The buyer assumes the risk of damage caused by improper installation.
  • All disputes arising from the transaction shall be resolved by a court of competent jurisdiction within Los Angeles County, California.
