Enginetech R40054-020 Engine Cast Iron Piston Ring Set for Jeep and Chevrolet Models

Sidebar
Enginetech R40054-020 Engine Cast Iron Piston Ring Set for Jeep and Chevrolet Models
Enginetech R40054-020 Engine Cast Iron Piston Ring Set for Jeep and Chevrolet Models

Enginetech R40054-020 Engine Cast Iron Piston Ring Set for Jeep and Chevrolet Models

: R40054-020

: Available

: Enginetech

$31.99

Shipping calculated at checkout.

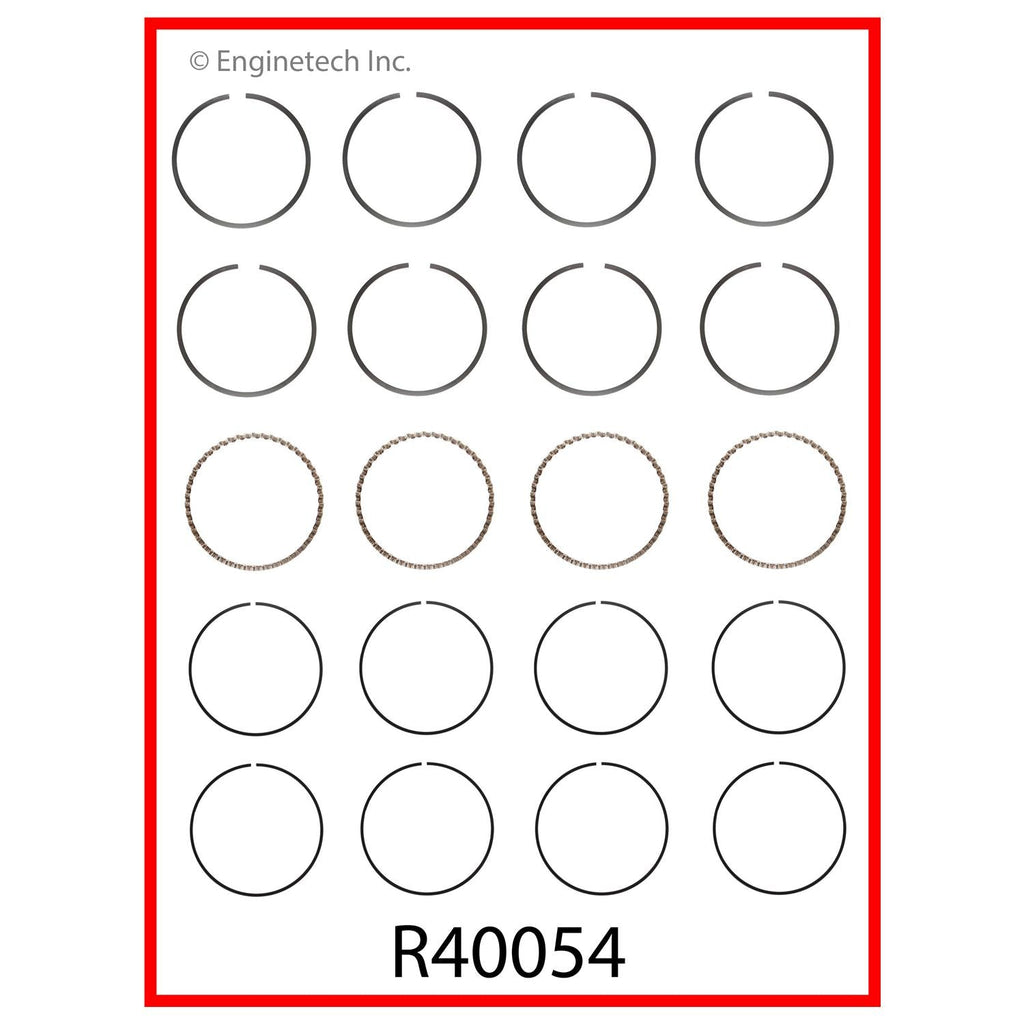

Engine Cast Iron Piston Ring Complete Set

The Enginetech R40054-020 engine cast iron piston ring complete set is engineered to deliver reliable performance across a variety of classic and vintage engines. Designed specifically for rebuilders and enthusiasts, this set ensures consistent end gaps following SAE guidelines, promoting optimal sealing and engine efficiency. The set includes top and second compression rings, both with a thickness of 5/64 inches, and an oil ring with a thickness of 3/16 inches, all crafted from durable cast iron for longevity and resistance to wear. With a ring outside diameter of 4.000 inches, these components are suitable for a range of engine applications, providing a straightforward solution for restoring engine compression and oil control. Whether you're rebuilding a Jeep CJ5, CJ7, or Scrambler, or working on vintage Buick or Chevrolet Astro engines, this kit offers a high-quality fit and finish to meet your needs.

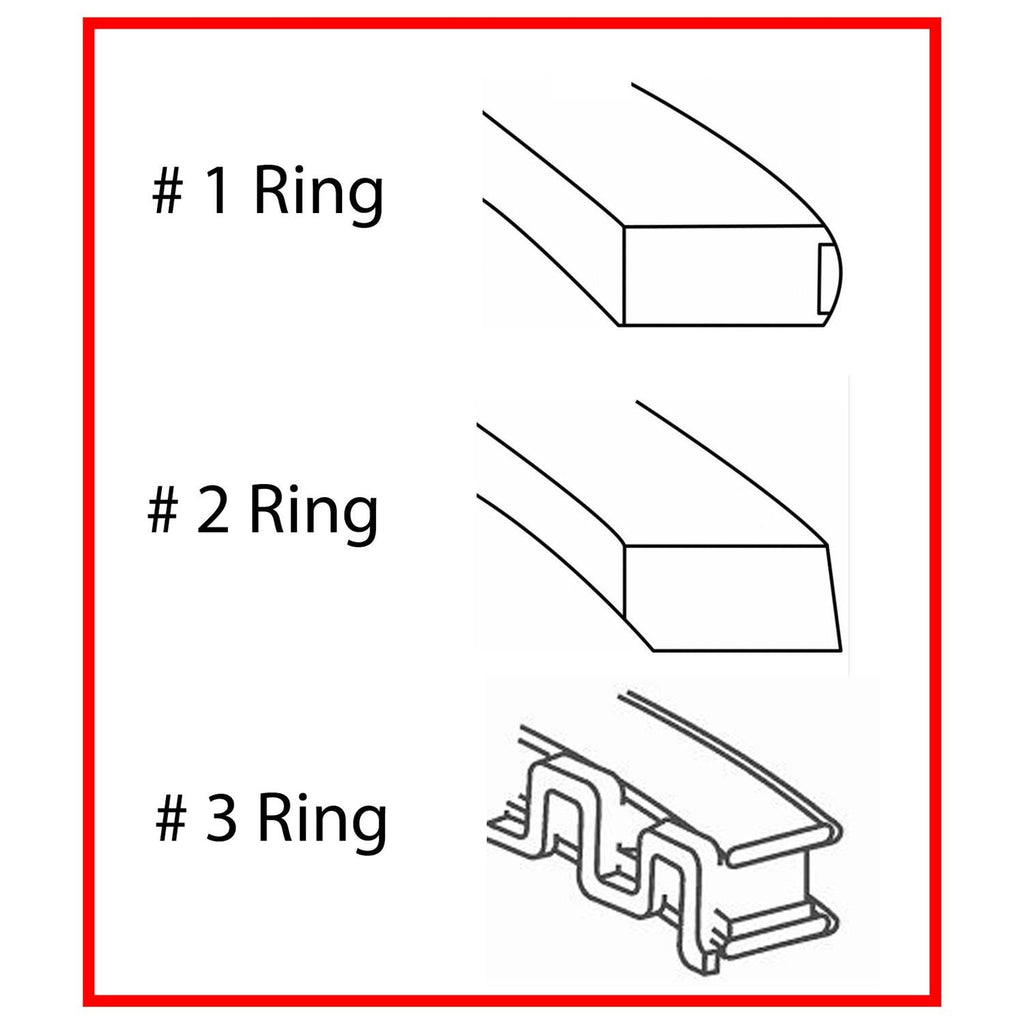

Features:

  • Consistent end gaps following SAE guidelines for reliable engine sealing
  • Top Compression Ring Thickness: 5/64 inch for optimal compression
  • Second Compression Ring Thickness: 5/64 inch for effective oil control
  • Oil Ring Thickness: 3/16 inch designed for efficient oil scraping
  • Ring Outside Diameter: 4.000 inches to fit a variety of engines
  • Durable cast iron construction ensures longevity and resistance to wear
  • Compatible with 1980-1986 Jeep and Chevrolet models, including CJ5, CJ7, Scrambler, Buick Skylark, and Astro

Fits Following Models:
1977 Pontiac Astre
1977 Pontiac Phoenix
1977 Pontiac Sunbird
1977 Pontiac Ventura
1978 Chevrolet Monza
1978 Pontiac Phoenix
1978 Pontiac Sunbird
1979 Chevrolet Monza
1979 Pontiac Sunbird
1980 American Motors Concord
1980 American Motors Spirit
1980 Buick Skylark
1980 Chevrolet Citation
1980 Chevrolet Monza
1980 Jeep CJ5
1980 Jeep CJ7
1980 Jeep DJ5
1980 Pontiac Phoenix
1980 Pontiac Sunbird
1981 American Motors Concord
1981 American Motors Eagle
1981 American Motors Spirit
1981 Jeep CJ5
1981 Jeep CJ7
1981 Jeep DJ5
1981 Jeep Scrambler
1985 Chevrolet Astro
1985 Chevrolet S10
1985 Chevrolet S10 Blazer
1985 GMC S15
1985 GMC S15 Jimmy
1985 GMC Safari
1986 Chevrolet Astro
1986 Chevrolet S10
1986 Chevrolet S10 Blazer
1986 GMC S15
1986 GMC S15 Jimmy
1986 GMC Safari
1987 Chevrolet Astro
1987 Chevrolet LLV
1987 Chevrolet S10
1987 Chevrolet S10 Blazer
1987 GMC S15
1987 GMC S15 Jimmy
1987 GMC Safari
1988 Chevrolet Astro
1988 Chevrolet LLV
1988 Chevrolet S10
1988 Chevrolet S10 Blazer
1988 GMC S15
1988 GMC S15 Jimmy
1988 GMC Safari
1989 Chevrolet Astro
1989 Chevrolet LLV
1989 Chevrolet S10
1989 GMC S15
1989 GMC Safari
1990 Chevrolet Astro
1990 Chevrolet LLV
1990 Chevrolet S10
1990 GMC S15
1990 GMC Safari
1991 Chevrolet LLV
1991 Chevrolet S10
1991 GMC Sonoma
1992 Chevrolet LLV
1992 Chevrolet S10
1992 GMC Sonoma
1993 Chevrolet LLV
1993 Chevrolet S10
1993 GMC Sonoma

Features:
Top Compression Ring Thickness: 5/64 in
Second Compression Ring Thickness: 5/64 in
Oil Ring Thickness: 3/16 in
Ring Outside Diameter: 4.000
Aaiaid Part Number: BBPTR40054-020
Part Number: R40054-020
Brand Aaia: BBPT
