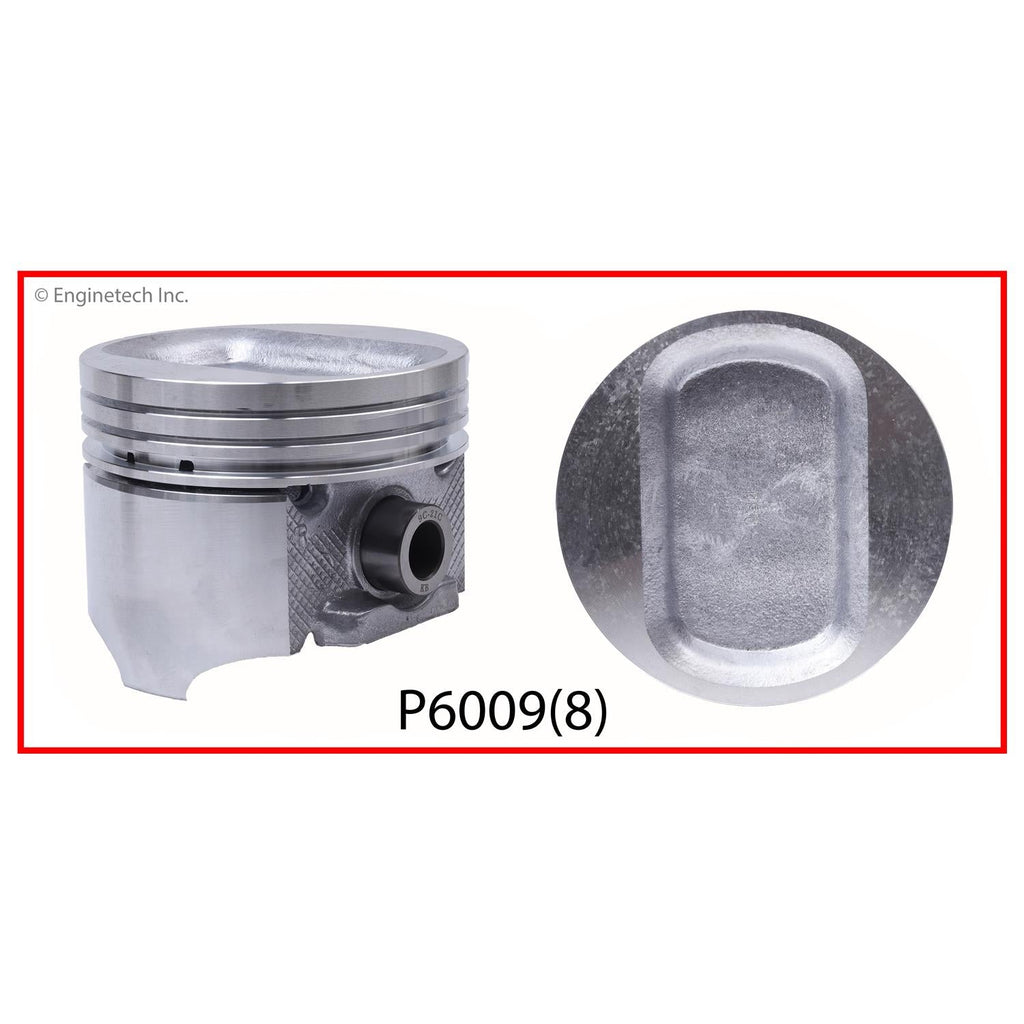

Enginetech P6009(8)060 Engine Piston Set Without Rings for Cadillac Chassis and Calais Models
Regular price $633.99
Engine Piston Set - without Rings
The Enginetech P6009(8)060 engine piston set is designed to deliver reliable performance for a range of Cadillac Commercial Chassis and Calais models from 1968 to 1974. Crafted for precision and durability, this piston set is essential for engine rebuilders seeking high-quality components. Engineered specifically for robust engine performance, this set ensures a perfect fit and consistent operation across various vintage Cadillac engines. The piston set includes components that are matched for weight, promoting smooth operation and reducing vibrations during engine cycles. Constructed with meticulous attention to detail, each piston features a bore diameter of 4.300 inches and a compression height of 2.004 inches, ensuring accurate fitment and optimal compression ratios. The set does not include rings, allowing for customization based on specific rebuild requirements or existing ring sets. The pistons also feature a piston pin outside diameter of approximately 0.9997 inches, compatible with a range of engine configurations. The top and second compression rings are both 5/64 inches thick, providing the right balance of sealing and heat dissipation, while the 3/16 inch oil ring ensures proper lubrication and oil control within the cylinder. This piston set is a perfect choice for professional rebuilders and automotive enthusiasts restoring classic Cadillacs, offering longevity and dependable performance. Whether restoring a vintage Cadillac or performing engine upgrades, the Enginetech P6009(8)060 pistons provide the quality and precision necessary to meet demanding automotive restoration standards.
Features:
- Matched weights for smooth engine operation
- Top and second compression ring thickness: 5/64 inch
- Oil ring thickness: 3/16 inch
- Piston pin outside diameter: 0.9997 inch
- Bore diameter: 4.300 inches
- Compression height: 2.004 inches
- Designed for 1968-1974 Cadillac Commercial Chassis and Calais models
- Engineered for durability and precise fit
- Ideal for engine rebuilding and restoration projects
Fits Following Models:
1968 Cadillac Calais
1968 Cadillac Commercial Chassis
1968 Cadillac DeVille
1968 Cadillac Eldorado
1968 Cadillac Fleetwood
1969 Cadillac Calais
1969 Cadillac Commercial Chassis
1969 Cadillac DeVille
1969 Cadillac Eldorado
1969 Cadillac Fleetwood
1970 Cadillac Calais
1970 Cadillac Commercial Chassis
1970 Cadillac DeVille
1970 Cadillac Fleetwood
1971 Cadillac Calais
1971 Cadillac Commercial Chassis
1971 Cadillac DeVille
1971 Cadillac Fleetwood
1972 Cadillac Calais
1972 Cadillac Commercial Chassis
1972 Cadillac DeVille
1972 Cadillac Fleetwood
1973 Cadillac Calais
1973 Cadillac Commercial Chassis
1973 Cadillac DeVille
1973 Cadillac Fleetwood
1974 Cadillac Calais
1974 Cadillac Commercial Chassis
1974 Cadillac DeVille
1974 Cadillac Fleetwood
| Top Compression Ring Thickness: 5/64 in |
| Second Compression Ring Thickness: 5/64 in |
| Oil Ring Thickness: 3/16 in |
| Piston Pin Outside Diameter: 0.9997 |
| Bore Diameter: 4.300 |
| Compression Height: 2.004 |
| Aaiaid Part Number: BBPTP6009(8)060 |
| Part Number: P6009(8)060 |
| Brand Aaia: BBPT |
