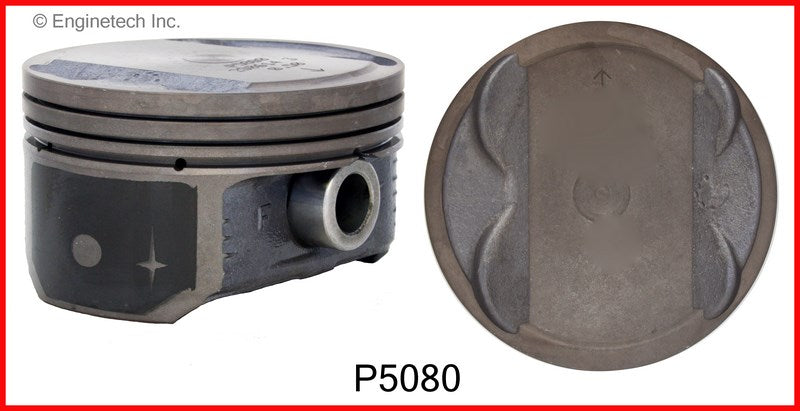

Enginetech P5080(4)STD Engine Piston Set Without Rings for Dodge and Jeep Models
Regular price $124.99
Engine Piston Set - without Rings
The Enginetech P5080(4)STD engine piston set is designed for precision performance in a variety of 2012-2016 Dodge and Jeep models. Crafted for durability and reliability, this piston set is ideal for engine rebuilds and replacements where high-quality components are essential. Each piston is engineered with matched weights to ensure perfect balance, reducing vibrations and promoting smooth engine operation. The set features a top compression ring thickness of 1.20 mm, a second compression ring thickness of 1.20 mm, and an oil ring thickness of 2.00 mm, providing an optimal seal for efficient combustion and oil control. The piston pin outside diameter measures 0.8268 inches, and the bore diameter is 3.386 inches, with a compression height of 1.073 inches, making it compatible with specific engine configurations. This piston set does not include rings, allowing the user to select the appropriate rings based on their application or preferences. Designed by Enginetech, a trusted name in engine components since 1982, this product is perfect for professional rebuilders and automotive enthusiasts seeking quality and performance.
Features:
- Matched weights for optimal engine balance
- Top Compression Ring Thickness: 1.20 mm
- Second Compression Ring Thickness: 1.20 mm
- Oil Ring Thickness: 2.00 mm
- Piston Pin Outside Diameter: 0.8268 inches
- Bore Diameter: 3.386 inches
- Compression Height: 1.073 inches
- Engine compatibility with 2012-2016 Dodge and Jeep models
Fits Following Models:
2007 Dodge Caliber
2007 Jeep Compass
2007 Jeep Patriot
2008 Dodge Caliber
2008 Jeep Compass
2008 Jeep Patriot
2009 Dodge Caliber
2009 Jeep Compass
2009 Jeep Patriot
2010 Dodge Caliber
2010 Jeep Compass
2010 Jeep Patriot
2011 Dodge Caliber
2011 Jeep Compass
2011 Jeep Patriot
2012 Dodge Caliber
2012 Jeep Compass
2012 Jeep Patriot
2013 Jeep Compass
2013 Jeep Patriot
2014 Jeep Compass
2014 Jeep Patriot
2015 Jeep Compass
2015 Jeep Patriot
2016 Jeep Compass
2016 Jeep Patriot
2017 Jeep Compass
2017 Jeep Patriot
| Top Compression Ring Thickness: 1.20 mm |
| Second Compression Ring Thickness: 1.20 mm |
| Oil Ring Thickness: 2.00 mm |
| Piston Pin Outside Diameter: 0.8268 |
| Bore Diameter: 3.386 |
| Compression Height: 1.073 |
| Aaiaid Part Number: BBPTP5080(4)STD |
| Part Number: P5080(4)STD |
| Brand Aaia: BBPT |
