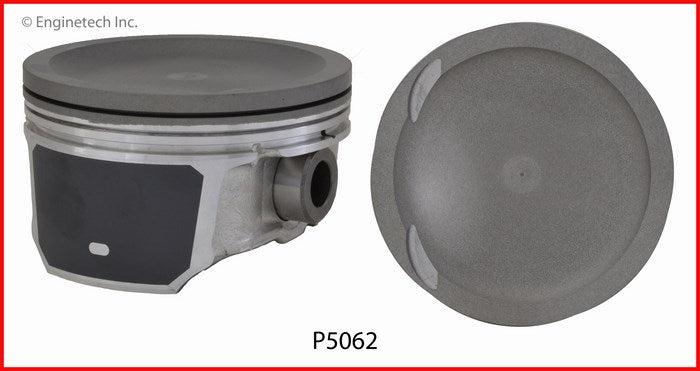

Enginetech P5062(4)STD Engine Piston Set Without Rings for Mazda 3, Mazda 6, Ford Fusion and Mercury Milan
Regular price $154.99
Engine Piston Set - without Rings
The Enginetech P5062(4)STD engine piston set is designed to provide reliable performance for various Mazda, Ford, and Mercury models from 2004 to 2007. This high-quality piston set is engineered to meet the demands of engine rebuilders seeking precision components for optimal engine operation. Each piston in the set is matched for perfect balance, ensuring smooth running and reduced vibrations. The set includes pistons compatible with engines in the Mazda 3, Mazda 6, Ford Fusion, and Mercury Milan, offering a dependable solution for engine restoration projects.
Constructed without rings, this piston set features a bore diameter of 3.445 inches and a compression height of 1.107 inches. The pistons are designed with top and second compression ring thicknesses of 1.20 mm and an oil ring thickness of 2.50 mm, providing effective sealing and oil control. The piston pin outside diameter measures 0.8267 inches, ensuring precise fitment within the engine assembly. Engineered by Enginetech, a trusted name in engine components since 1982, these pistons are tailored specifically for engine rebuilders seeking quality, durability, and performance. Whether you're restoring a domestic or import engine, this set offers a reliable foundation for your rebuild process, backed by Enginetech's reputation for high standards and excellent customer service.
Features:
- Matched weights for perfect balance
- Top compression ring thickness: 1.20 mm
- Second compression ring thickness: 1.20 mm
- Oil ring thickness: 2.50 mm
- Piston pin outside diameter: 0.8267 inches
- Bore diameter: 3.445 inches
- Compression height: 1.107 inches
- Engine compatible with 2004-2007 Mazda 3, Mazda 6, Ford Fusion, and Mercury Milan models
Fits Following Models:
2003 Mazda 6
2004 Mazda 3
2004 Mazda 6
2005 Mazda 3
2005 Mazda 6
2006 Ford Fusion
2006 Mazda 3
2006 Mazda 6
2006 Mercury Milan
2007 Ford Fusion
2007 Mazda 3
2007 Mazda 6
2007 Mercury Milan
2008 Ford Fusion
2008 Mazda 3
2008 Mazda 6
2008 Mercury Milan
2009 Ford Fusion
2009 Mazda 3
2009 Mercury Milan
| Top Compression Ring Thickness: 1.20 mm |
| Second Compression Ring Thickness: 1.20 mm |
| Oil Ring Thickness: 2.50 mm |
| Piston Pin Outside Diameter: 0.8267 |
| Bore Diameter: 3.445 |
| Compression Height: 1.107 |
| Aaiaid Part Number: BBPTP5062(4)STD |
| Part Number: P5062(4)STD |
| Brand Aaia: BBPT |
- Performance Part offers a Limited Warranty to entire products to be free from defects in workmanship and material under normal service conditions for a period of 90 days whichever occurs from the original date of delivery of the good.
- The warranty is not transferable, is valid to the original purchaser, and is limited to the replacement of defective products only.
- This Limited Warranty does not cover labor, damage from accidents, alterations, misuse, or modifications not intended by the manufacturer, and other expenses such as towing loading fluids, oils, or car rentals.
- All warranty claims must be pre-authorized and returned prepaid to Performance Part for inspection and approval.
- No exchanges will be made for any product that has been damaged, misused, or improperly installed. We always recommend professional installation of our products.
- The buyer assumes the risk of damage caused by improper installation.
- All disputes arising from the transaction shall be resolved by a court of competent jurisdiction within Los Angeles County, California.
