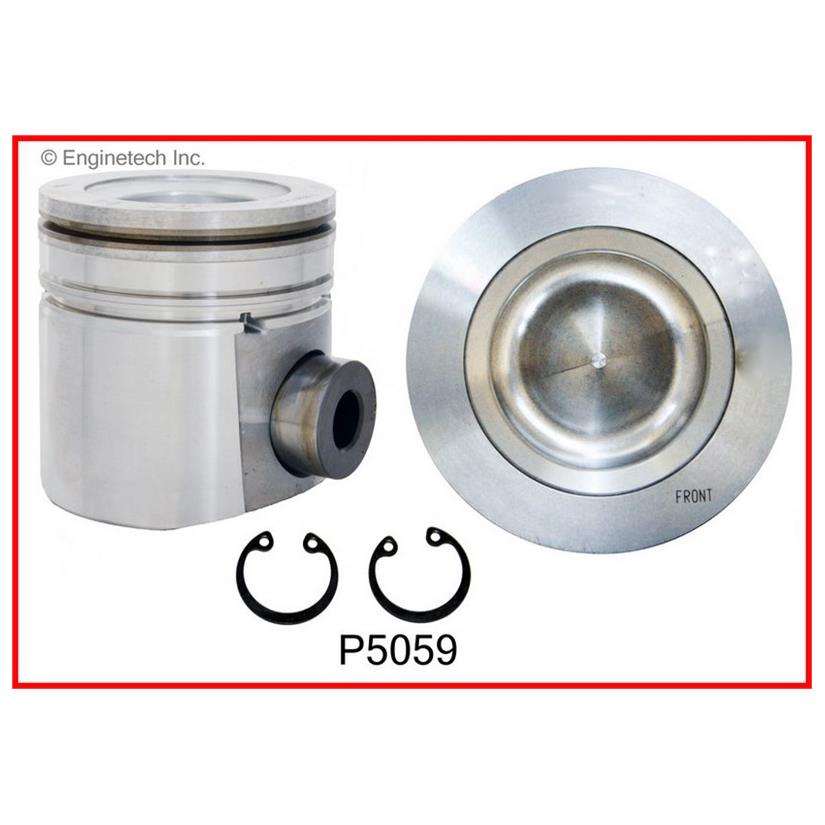

Enginetech P5059(6).50 Engine Piston Set Without Rings for Dodge Ram 2500 and 3500 (2003-2004)

Sidebar
Enginetech P5059(6).50 Engine Piston Set Without Rings for Dodge Ram 2500 and 3500 (2003-2004)

Enginetech P5059(6).50 Engine Piston Set Without Rings for Dodge Ram 2500 and 3500 (2003-2004)

: P5059(6).50

: Available

: Enginetech

$951.99

Shipping calculated at checkout.

Engine Piston Set - without Rings

The Enginetech P5059(6).50 engine piston set is designed for reliable performance in Dodge Ram 2500 and 3500 trucks from 2003 and 2004. This set includes pistons engineered for high durability and precise fit, ensuring optimal engine operation. Crafted with matched weights, these pistons promote balanced engine performance and smooth operation. The set features top compression ring thickness of 3.00 mm, second compression ring thickness of 2.36 mm, and oil ring thickness of 4.00 mm, contributing to efficient sealing and reduced blow-by. The piston pin outside diameter measures 1.5748 inches, compatible with a bore diameter of 4.016 inches, with a compression height of 2.811 inches, ensuring proper piston-to-cylinder fit. Designed specifically for engine rebuilder needs, Enginetech parts are known for quality and consistency, making this set an excellent choice for rebuild projects or engine upgrades.

Features:

  • Matched weights for perfect engine balance ensuring smooth operation
  • Top compression ring thickness: 3.00 mm for optimal sealing
  • Second compression ring thickness: 2.36 mm for effective compression control
  • Oil ring thickness: 4.00 mm for improved oil control and sealing
  • Piston pin outside diameter: 1.5748 inches for secure fitment
  • Bore diameter: 4.016 inches designed for specific Dodge Ram models
  • Compression height: 2.811 inches to match engine specifications
  • Engine set without rings, ready for installation with your preferred rings

Fits Following Models:
2003 Dodge Ram 2500
2003 Dodge Ram 3500
2004 Dodge Ram 2500
2004 Dodge Ram 3500

Features:
Top Compression Ring Thickness: 3.00 mm
Second Compression Ring Thickness: 2.36 mm
Oil Ring Thickness: 4.00 mm
Piston Pin Outside Diameter: 1.5748
Bore Diameter: 4.016
Compression Height: 2.811
Aaiaid Part Number: BBPTP5059(6).50
Part Number: P5059(6).50
Brand Aaia: BBPT

  • Performance Part offers a Limited Warranty to entire products to be free from defects in workmanship and material under normal service conditions for a period of 90 days whichever occurs from the original date of delivery of the good.
  • The warranty is not transferable, is valid to the original purchaser, and is limited to the replacement of defective products only.
  • This Limited Warranty does not cover labor, damage from accidents, alterations, misuse, or modifications not intended by the manufacturer, and other expenses such as towing loading fluids, oils, or car rentals.
  • All warranty claims must be pre-authorized and returned prepaid to Performance Part for inspection and approval.
  • No exchanges will be made for any product that has been damaged, misused, or improperly installed. We always recommend professional installation of our products.
  • The buyer assumes the risk of damage caused by improper installation.
  • All disputes arising from the transaction shall be resolved by a court of competent jurisdiction within Los Angeles County, California.
