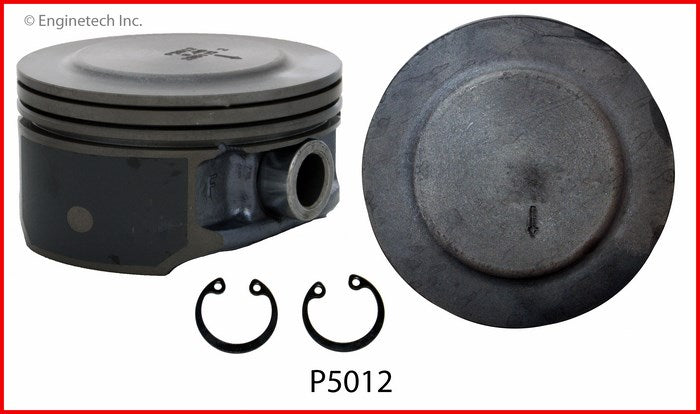

Enginetech P5012(5)STD Engine Piston Set Without Rings for GMC Canyon, Chevrolet Colorado, Hummer H3, and Isuzu i-350
Regular price $164.99
Engine Piston Set - without Rings
The Enginetech P5012(5)STD engine piston set is engineered for optimal performance in a variety of late-model trucks and SUVs, including the 2004-2006 GMC Canyon, Chevrolet Colorado, Hummer H3, and Isuzu i-350. Crafted with precision, this piston set is designed to deliver reliable power and efficiency, making it an ideal choice for engine rebuilding and repair projects. Each piston features matched weights for perfect balance, ensuring smooth operation and reducing vibrations during engine use. The set includes pistons without rings, allowing you to select the appropriate rings for your specific application and preferences.
The pistons are constructed with a bore diameter of 3.661 inches and a compression height of 1.189 inches, providing a precise fit for compatible engines. The top compression ring has a thickness of 1.20 mm, the second compression ring is 1.50 mm thick, and the oil ring measures 2.50 mm, contributing to excellent sealing and oil control. The piston pin has an outside diameter of 0.9055 inches, ensuring a secure fit within the connecting rod. These features work together to optimize compression, power output, and engine longevity.
Enginetech, a family-owned and operated company since 1982, specializes in high-quality engine parts designed specifically for engine rebuilders. Their parts are engineered for durability and performance, backed by their nationwide distribution and dedicated customer service. The P5012(5)STD piston set is compatible with a range of engines, providing a dependable option for professionals and enthusiasts seeking to restore or upgrade their vehicle's engine performance.
Features:
- Matched weights for perfect engine balance
- Top compression ring thickness: 1.20 mm
- Second compression ring thickness: 1.50 mm
- Oil ring thickness: 2.50 mm
- Piston pin outside diameter: 0.9055 inches
- Bore diameter: 3.661 inches
- Compression height: 1.189 inches
- Designed for 2004-2006 GMC Canyon, Chevrolet Colorado, Hummer H3, and Isuzu i-350
Fits Following Models:
2004 Chevrolet Colorado
2004 GMC Canyon
2005 Chevrolet Colorado
2005 GMC Canyon
2006 Chevrolet Colorado
2006 GMC Canyon
2006 Hummer H3
2006 Isuzu i-350
| Top Compression Ring Thickness: 1.20 mm |
| Second Compression Ring Thickness: 1.50 mm |
| Oil Ring Thickness: 2.50 mm |
| Piston Pin Outside Diameter: 0.9055 |
| Bore Diameter: 3.661 |
| Compression Height: 1.189 |
| Aaiaid Part Number: BBPTP5012(5)STD |
| Part Number: P5012(5)STD |
| Brand Aaia: BBPT |
