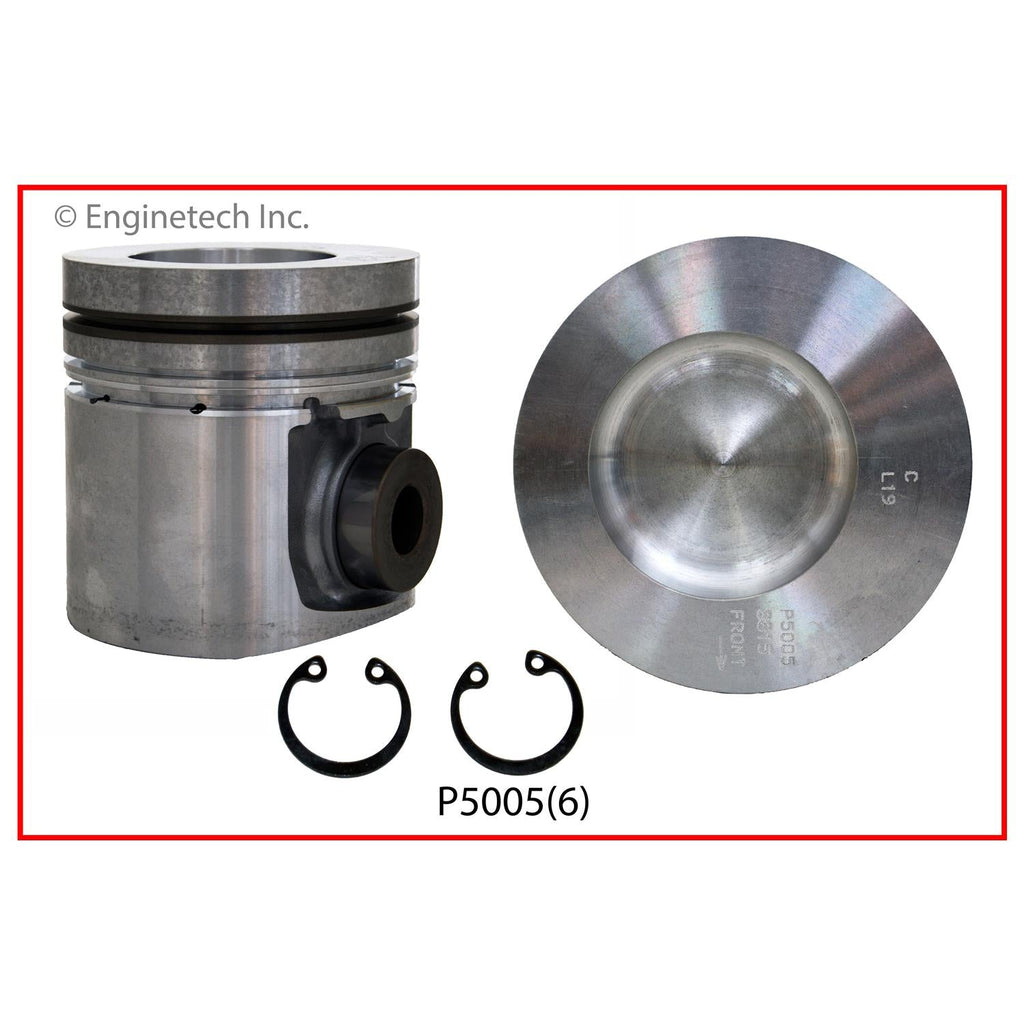

Enginetech P5005(6)STD Engine Piston Set Without Rings for Dodge D250, D350, W250, W350 (1989-1991)
Regular price $361.99
Engine Piston Set - without Rings
The Enginetech P5005(6)STD Engine Piston Set is designed for precise performance and durability in Dodge trucks from 1989 to 1991, including models D250, D350, W250, and W350. Crafted with high-quality materials, this piston set features matched weights to ensure perfect balance and smooth engine operation. The set does not include rings, making it ideal for use with your existing components or custom setups. It offers reliable performance for rebuilders and mechanics seeking a trusted replacement part.
Engineered specifically for engine rebuilds, the Enginetech P5005(6)STD piston set provides accurate bore and compression specifications. The pistons are designed with a bore diameter of 4.016 inches and a compression height of 2.809 inches, ensuring proper fit and function within your engine block. The top compression ring thickness is 3.00 mm, the second compression ring is 2.40 mm thick, and the oil ring is 4.00 mm thick, all optimized for efficient sealing and oil control. The piston pin outside diameter measures 1.5748 inches, matching the specifications for compatible engines.
This piston set is ideal for rebuilders aiming to restore engine performance or increase reliability. It is compatible with a range of Dodge heavy-duty trucks from the late 1980s and early 1990s, providing an OEM-like fit and finish. Whether you're performing a complete engine overhaul or replacing worn components, the Enginetech P5005(6)STD offers the quality and consistency needed for a successful rebuild. Trust Enginetech's reputation for high-quality engine parts and technical precision, ensuring your engine runs smoothly and efficiently for miles to come.
Features:
- Matched weights for perfect engine balance
- Top Compression Ring Thickness: 3.00 mm
- Second Compression Ring Thickness: 2.40 mm
- Oil Ring Thickness: 4.00 mm
- Piston Pin Outside Diameter: 1.5748 inches
- Bore Diameter: 4.016 inches
- Compression Height: 2.809 inches
- Designed for Dodge D250, D350, W250, and W350 models from 1989-1991
Fits Following Models:
1989 Dodge D250
1989 Dodge D350
1989 Dodge W250
1989 Dodge W350
1990 Dodge D250
1990 Dodge D350
1990 Dodge W250
1990 Dodge W350
1991 Dodge D250
1991 Dodge D350
1991 Dodge W250
1991 Dodge W350
| Top Compression Ring Thickness: 3.00 mm |
| Second Compression Ring Thickness: 2.40 mm |
| Oil Ring Thickness: 4.00 mm |
| Piston Pin Outside Diameter: 1.5748 |
| Bore Diameter: 4.016 |
| Compression Height: 2.809 |
| Aaiaid Part Number: BBPTP5005(6)STD |
| Part Number: P5005(6)STD |
| Brand Aaia: BBPT |
