Engine Piston Set - without Rings

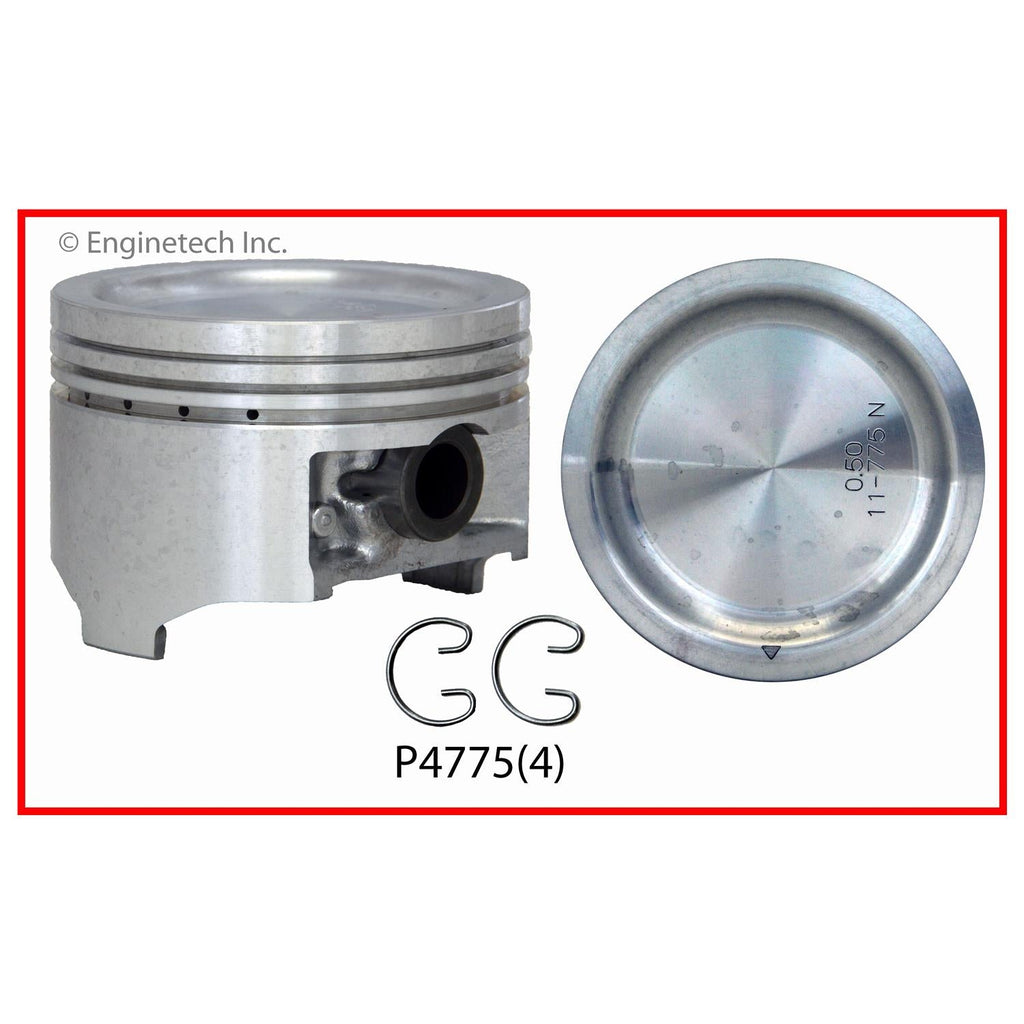

The Enginetech P4775(4).50 engine piston set is designed to provide reliable performance for a variety of Suzuki and Chevrolet models, including the 2002 Suzuki Aerio, 2003 Suzuki Aerio, 1996-1999 Chevrolet Tracker, and 1996-2002 Suzuki Sidekick. Crafted with precision engineering, this piston set is suitable for rebuilds and engine repairs where high-quality components are essential. Each piston is matched for perfect balance, ensuring smooth operation and optimized engine performance. This set includes pistons that feature specific dimensions and ring grooves tailored for these applications, helping restore engine compression and efficiency.

Constructed without rings, the piston set offers compatibility with existing ring sets or custom ring installations. The pistons feature a bore diameter of 3.307 inches and a compression height of 1.158 inches, designed to fit snugly within the engine cylinders. The piston pin outside diameter measures 0.8267 inches, ensuring secure attachment to the connecting rod. The design incorporates top compression ring thickness of 1.20 mm, second compression ring thickness of 1.50 mm, and oil ring thickness of 2.50 mm, contributing to effective sealing and oil control. These specifications make the piston set suitable for engines requiring precise fit and optimal performance.

Enginetech has been a family-owned and operated business since 1982, committed to providing high-quality engine parts tailored for rebuilder needs. Their products are engineered for durability, performance, and compatibility across a wide range of import and domestic engines. With nationwide distribution and dedicated customer support, Enginetech ensures that engine rebuilders and repair shops receive reliable components designed to meet or exceed OEM standards. The P4775(4).50 piston set exemplifies the brand’s dedication to quality and precision, making it an excellent choice for restoring engine power and efficiency.

Features:

• Matched weights for perfect balance

• Top compression ring thickness: 1.20 mm

• Second compression ring thickness: 1.50 mm

• Oil ring thickness: 2.50 mm

• Piston pin outside diameter: 0.8267 inches

• Bore diameter: 3.307 inches

• Compression height: 1.158 inches

• Engine rebuild compatibility for specific Suzuki and Chevrolet models

Fits Following Models:
1996 Suzuki Sidekick
1997 Suzuki Sidekick
1998 Suzuki Sidekick
1999 Chevrolet Tracker
1999 Suzuki Esteem
1999 Suzuki Vitara
2000 Chevrolet Tracker
2000 Suzuki Esteem
2000 Suzuki Vitara
2001 Chevrolet Tracker
2001 Suzuki Esteem
2001 Suzuki Vitara
2002 Chevrolet Tracker
2002 Suzuki Aerio
2002 Suzuki Esteem
2002 Suzuki Vitara
2003 Chevrolet Tracker
2003 Suzuki Aerio
2003 Suzuki Vitara
