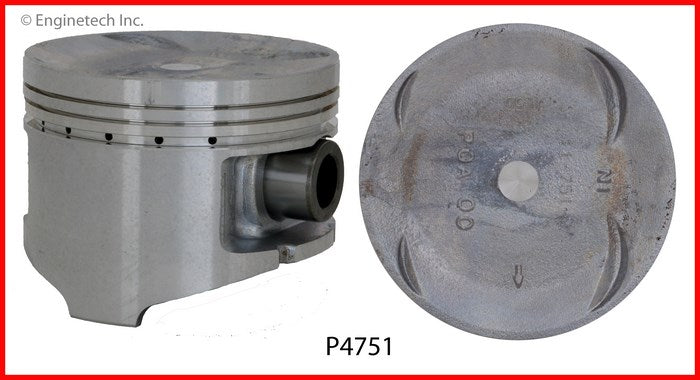

Enginetech P4751(4)STD Engine Piston Set Without Rings for Honda and Isuzu Vehicles
Regular price $85.99
Engine Piston Set - without Rings
The Enginetech P4751(4)STD engine piston set is designed to provide reliable performance for a variety of Honda and Isuzu models from the mid-1990s. Crafted with precision, this piston set features matched weights to ensure smooth operation and balanced engine performance. The set includes pistons engineered for optimal fitment and durability, making it an ideal choice for engine rebuilders and automotive enthusiasts seeking quality components.
Constructed with top-quality materials, the Enginetech P4751(4)STD features a top compression ring thickness of 1.20 mm, a second compression ring thickness of 1.20 mm, and an oil ring thickness of 2.80 mm. These specifications contribute to effective sealing and efficient oil control during engine operation. The piston pin outside diameter measures 0.8661 inches, ensuring proper fitment within the engine's connecting rods, while the bore diameter is 3.347 inches, matching the engine's specifications. The compression height of 1.200 inches provides the correct piston-to-deck clearance for optimal combustion and power output.
Engine rebuilders and mechanics will appreciate the precision engineering and compatibility of this piston set, which fits various models including 1996-1997 Honda Accord, 1994-1997 Honda Odyssey, 1996-1997 Honda Accord, and 1996-1997 Isuzu Oasis. By choosing the Enginetech P4751(4)STD, users can ensure high-quality performance and durability in their engine rebuild projects, backed by Enginetech’s reputation for excellence in engine components.
Features:
- Matched weights for smooth engine balance
- Top Compression Ring Thickness: 1.20 mm
- Second Compression Ring Thickness: 1.20 mm
- Oil Ring Thickness: 2.80 mm
- Piston Pin Outside Diameter: 0.8661 inches
- Bore Diameter: 3.347 inches
- Compression Height: 1.200 inches
- Designed for select Honda and Isuzu models from 1994 to 1997
Fits Following Models:
1994 Honda Accord
1994 Honda Prelude
1995 Honda Accord
1995 Honda Odyssey
1995 Honda Prelude
1996 Honda Accord
1996 Honda Odyssey
1996 Honda Prelude
1996 Isuzu Oasis
1997 Acura CL
1997 Honda Accord
1997 Honda Odyssey
1997 Isuzu Oasis
| Top Compression Ring Thickness: 1.20 mm |
| Second Compression Ring Thickness: 1.20 mm |
| Oil Ring Thickness: 2.80 mm |
| Piston Pin Outside Diameter: 0.8661 |
| Bore Diameter: 3.347 |
| Compression Height: 1.200 |
| Aaiaid Part Number: BBPTP4751(4)STD |
| Part Number: P4751(4)STD |
| Brand Aaia: BBPT |
