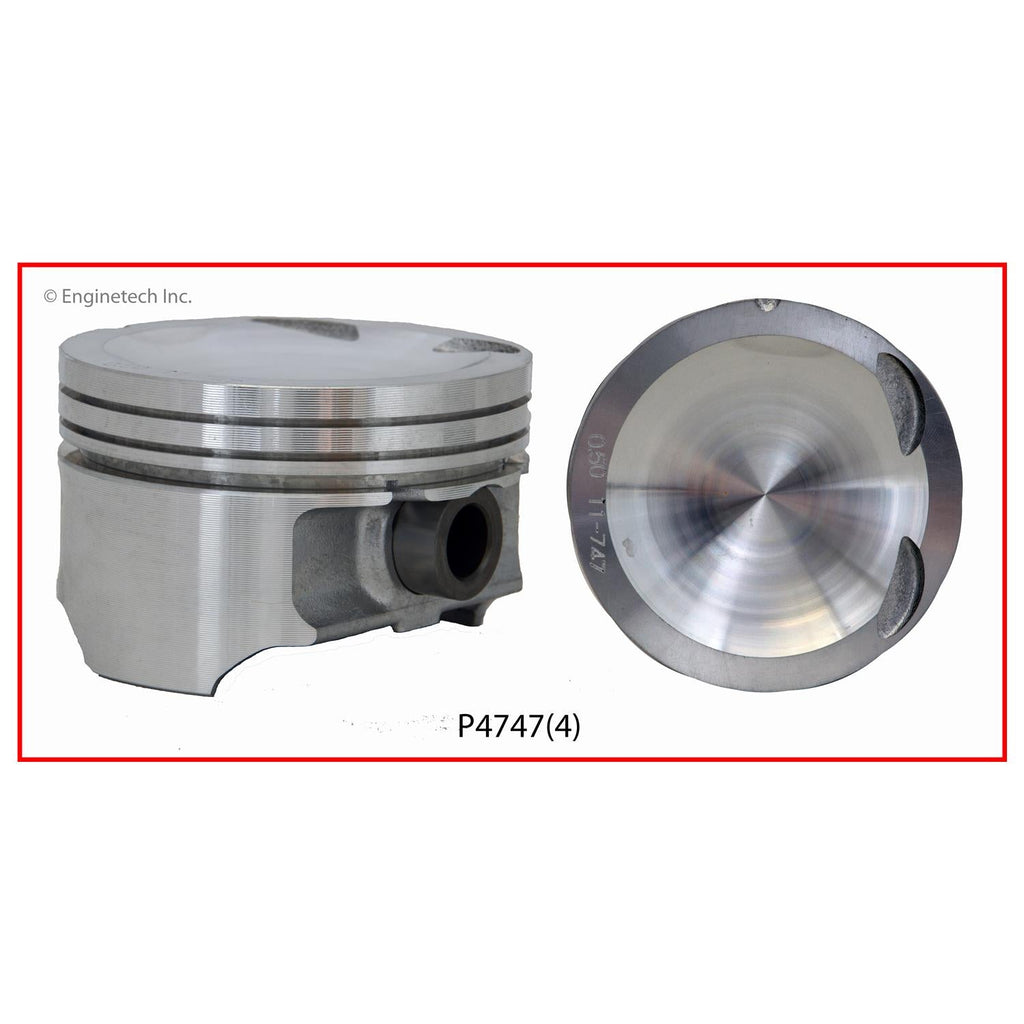

Engine Piston Set - without Rings

The Enginetech P4747(4).50 engine piston set is designed to deliver reliable performance and durability for a range of import and domestic engines. Crafted with precision, this piston set is suitable for various 1998-2001 Isuzu models including Amigo, Rodeo, and Rodeo Sport, as well as select Daewoo Leganza vehicles. Engine rebuilding professionals and enthusiasts alike will appreciate the quality and consistency provided by Enginetech, a trusted name in engine parts since 1982.
Each piston features matched weights for optimal balance, ensuring smooth operation and reduced vibration during engine performance. The set includes pistons with a bore diameter of 3.386 inches and a compression height of 1.197 inches, making it compatible with specific engine configurations. The pistons are engineered with a top compression ring thickness of 1.50 mm, a second compression ring thickness of 1.50 mm, and an oil ring thickness of 3.00 mm, all designed to promote proper sealing and efficient oil control.
Constructed without rings, these pistons are ideal for custom builds or rebuilds where rings are added separately. The piston pin outside diameter measures 0.8267 inches, ensuring a precise fit within the engine’s connecting rods. Made with high-quality materials, the Enginetech P4747(4).50 pistons provide dependable performance, ease of installation, and long-lasting durability. Whether you're restoring an engine to factory standards or building a high-performance engine, this piston set supports your project with precision engineering and consistent quality.

Features:

• Matched weights for perfect engine balance

• Top and second compression ring thickness: 1.50 mm

• Oil ring thickness: 3.00 mm

• Piston pin outside diameter: 0.8267 inches

• Bore diameter: 3.386 inches

• Compression height: 1.197 inches

• Engine compatibility: 1998-2001 Isuzu Amigo, Rodeo, and Sport, plus Daewoo Leganza

• Engine builder quality from Enginetech, established in 1982

Fits Following Models:
1998 Isuzu Amigo
1998 Isuzu Rodeo
1999 Daewoo Leganza
1999 Isuzu Amigo
1999 Isuzu Rodeo
2000 Daewoo Leganza
2000 Isuzu Amigo
2000 Isuzu Rodeo
2001 Daewoo Leganza
2001 Isuzu Rodeo
2001 Isuzu Rodeo Sport
2002 Daewoo Leganza
