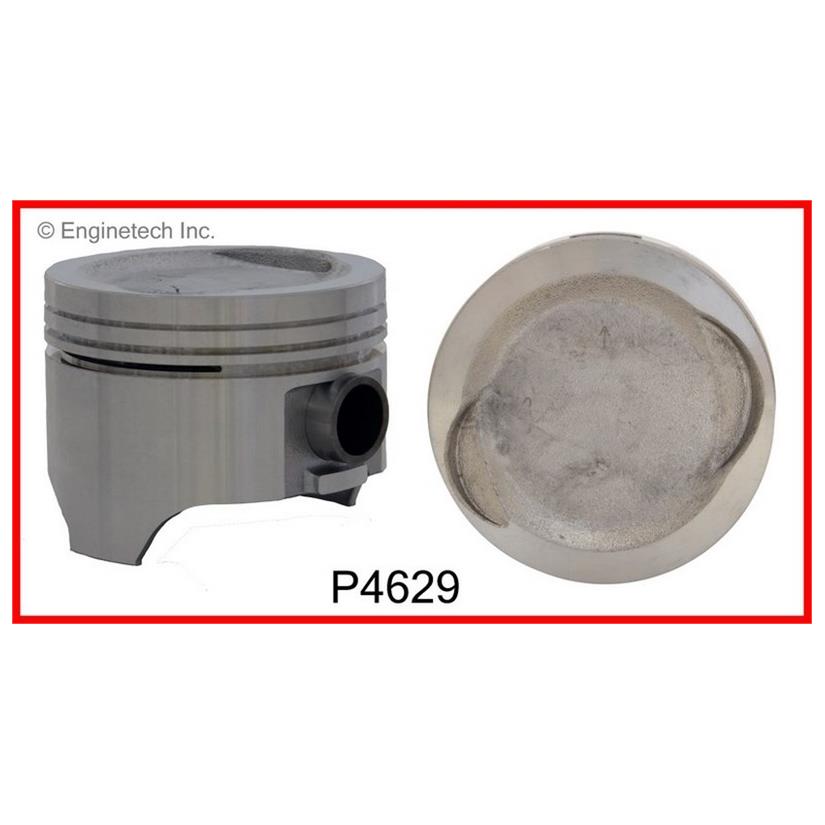

Enginetech P4629(4)STD Engine Piston Set Without Rings for Suzuki Sidekick and Geo Tracker
Regular price $61.99
Engine Piston Set - without Rings
The Enginetech P4629(4)STD engine piston set is designed to meet the high standards of professional engine rebuilders. This piston set is compatible with various Suzuki Sidekick models from 1989 to 1995 and Geo Tracker models from 1989 to 1991, making it a reliable choice for restoring these vehicles. Crafted with precision, this piston set ensures optimal performance and durability for your engine rebuild projects. It features matched weights for balanced operation, which helps in reducing vibrations and improving engine smoothness. The piston set includes pistons without rings, allowing you to select the appropriate rings based on your specific needs and application requirements. The set's specifications include a bore diameter of 2.953 inches, a compression height of 1.114 inches, and a piston pin outside diameter of 0.748 inches, ensuring a precise fit for compatible engines. The top compression ring thickness is 1.20 mm, the second compression ring is 1.50 mm, and the oil ring is 2.80 mm, providing excellent sealing and oil control. Designed specifically for engine rebuilers, Enginetech parts are engineered for quality and longevity, ensuring your engine performs reliably after assembly. Whether you're performing a complete overhaul or replacing individual components, this piston set offers the durability and performance needed for a successful rebuild.
Features:
- Matched weights for perfect balance
- Top compression ring thickness: 1.20 mm
- Second compression ring thickness: 1.50 mm
- Oil ring thickness: 2.80 mm
- Piston pin outside diameter: 0.748 inches
- Bore diameter: 2.953 inches
- Compression height: 1.114 inches
- Engine compatibility with Suzuki Sidekick and Geo Tracker from 1989-1995
Fits Following Models:
1989 Geo Tracker
1989 Suzuki Sidekick
1990 Geo Tracker
1990 Suzuki Sidekick
1991 Geo Tracker
1991 Suzuki Sidekick
1992 Geo Tracker
1992 Suzuki Sidekick
1993 Geo Tracker
1993 Suzuki Sidekick
1994 Geo Tracker
1994 Suzuki Sidekick
1995 Geo Tracker
1995 Suzuki Sidekick
| Top Compression Ring Thickness: 1.20 mm |
| Second Compression Ring Thickness: 1.50 mm |
| Oil Ring Thickness: 2.80 mm |
| Piston Pin Outside Diameter: 0.7480 |
| Bore Diameter: 2.953 |
| Compression Height: 1.114 |
| Aaiaid Part Number: BBPTP4629(4)STD |
| Part Number: P4629(4)STD |
| Brand Aaia: BBPT |
