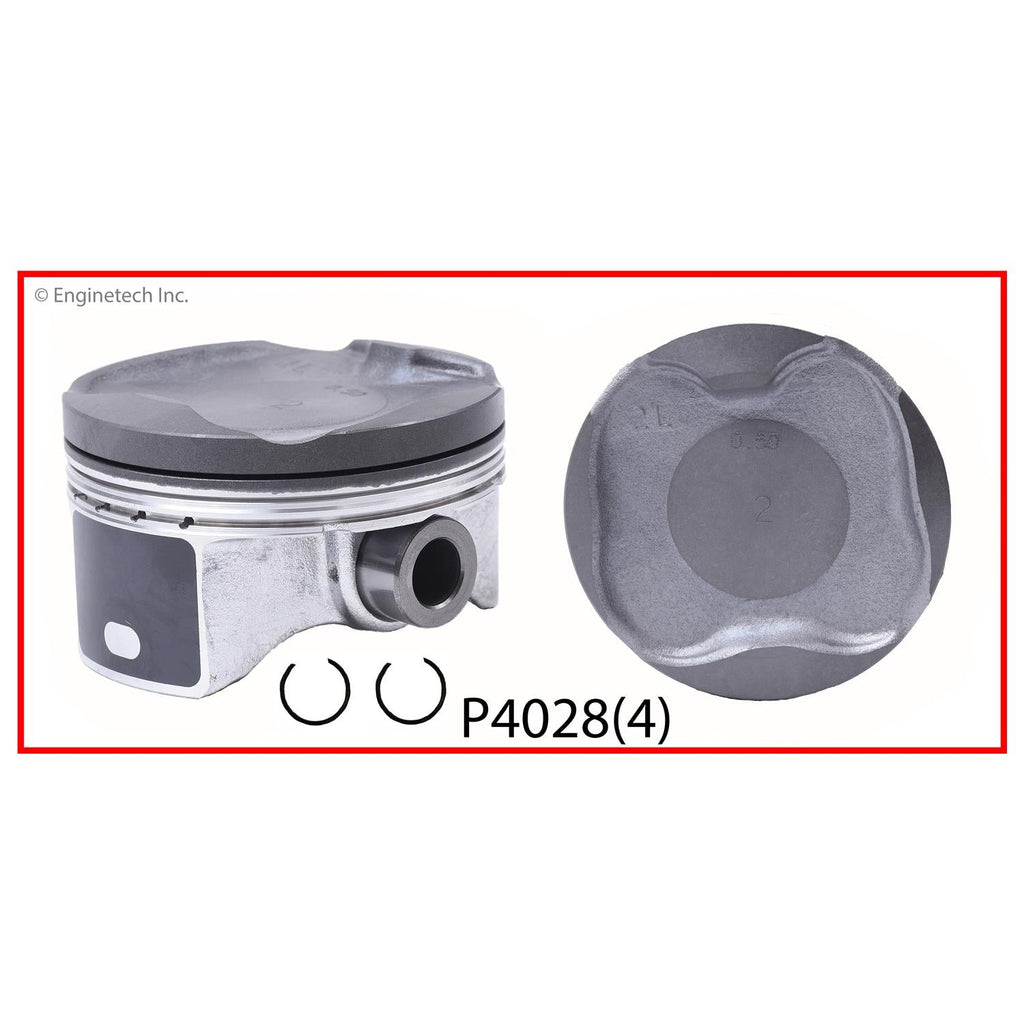

Enginetech P4028(4)STD Engine Piston Set Without Rings for 2008-2014 Toyota Models
Regular price $150.99
Engine Piston Set - without Rings
The Enginetech P4028(4)STD engine piston set is designed for precise replacement in compatible Toyota and Scion vehicles from 2008 to 2014. Crafted with high-quality materials, this piston set ensures reliable performance and durability in your engine rebuild or repair. The matched weights of the pistons promote perfect balance, reducing vibrations and enhancing engine efficiency. The set features a bore diameter of 3.169 inches and a compression height of 1.221 inches, making it suitable for specific engine configurations. The piston pin outside diameter measures 0.7874 inches, ensuring proper fitment with your engine components. Top and second compression rings are each 1.00 mm thick, while the oil ring measures 1.50 mm, promoting effective oil control and sealing within the combustion chamber. This set is engineered specifically for rebuilders seeking quality components that meet OEM standards, providing peace of mind during installation and operation. The P4028(4)STD set is compatible with a range of popular Toyota and Scion models, including the 2012-2014 Toyota Corolla, 2012-2014 Toyota Matrix, and 2008-2013 Scion xD, making it an ideal choice for restoring engine performance in these vehicles. Backed by Enginetech's commitment to quality and customer service, this piston set ensures a smooth and reliable rebuild process, delivering long-lasting engine performance. Trust Enginetech for your engine rebuild needs, and experience the difference of parts engineered specifically for engine builders and repair professionals.
Features:
- Matched weights for perfect engine balance
- Top Compression Ring Thickness: 1.00 mm
- Second Compression Ring Thickness: 1.00 mm
- Oil Ring Thickness: 1.50 mm
- Piston Pin Outside Diameter: 0.7874 inches
- Bore Diameter: 3.169 inches
- Compression Height: 1.221 inches
- Engine-specific design for 2008-2014 Toyota and Scion models
Fits Following Models:
2008 Scion xD
2009 Pontiac Vibe
2009 Scion xD
2009 Toyota Corolla
2009 Toyota Matrix
2010 Pontiac Vibe
2010 Scion xD
2010 Toyota Corolla
2010 Toyota Matrix
2011 Scion xD
2011 Toyota Corolla
2011 Toyota Matrix
2012 Scion xD
2012 Toyota Corolla
2012 Toyota Matrix
2013 Scion xD
2013 Toyota Corolla
2013 Toyota Matrix
2014 Scion xD
| Top Compression Ring Thickness: 1.00 mm |
| Second Compression Ring Thickness: 1.00 mm |
| Oil Ring Thickness: 1.50 mm |
| Piston Pin Outside Diameter: 0.7874 in |
| Bore Diameter: 3.169 in |
| Compression Height: 1.221 |
| Aaiaid Part Number: BBPTP4028(4)STD |
| Part Number: P4028(4)STD |
| Brand Aaia: BBPT |
