Enginetech P3098(8)STD Engine Piston Set Without Rings for Chevrolet C2500 and C3500 (1996-2000)
Regular price $248.99

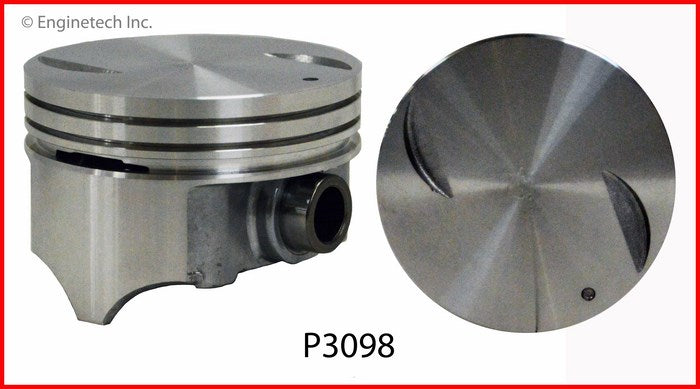

Engine Piston Set - without Rings
The Enginetech P3098(8)STD Engine Piston Set is designed to deliver high performance and reliability for select Chevrolet C2500 and C3500 models from 1996 to 2000. Crafted with precision, this piston set is ideal for engine rebuilds and repairs, ensuring proper fit and optimal engine operation. Made by Enginetech, a trusted name in engine components since 1982, this piston set is engineered specifically for engine rebuilders seeking quality parts that meet or exceed OEM standards. The set includes pistons without rings, offering flexibility for custom applications or existing ring sets. Featuring matched weights for perfect balance, these pistons contribute to smoother engine performance and longevity. The bore diameter is precisely machined to 4.250 inches, with a compression height of 1.625 inches, ensuring proper piston-to-cylinder fit. The piston pin outside diameter measures 0.9898 inches, compatible with many engine configurations. The top and second compression rings are each 5/64 inches thick, while the oil ring measures 3/16 inches, providing effective sealing and oil control. Whether rebuilding or restoring your engine, the P3098(8)STD piston set offers the quality and durability required for demanding automotive applications. Trust Enginetech for your engine parts needs, backed by a commitment to customer satisfaction and nationwide distribution.
Features:
- Matched weights for perfect engine balance
- Top compression ring thickness: 5/64 inch
- Second compression ring thickness: 5/64 inch
- Oil ring thickness: 3/16 inch
- Piston pin outside diameter: 0.9898 inches
- Bore diameter: 4.250 inches
- Compression height: 1.625 inches
- Engine rebuild compatible for Chevrolet C2500 and C3500 models from 1996-2000
Fits Following Models:
1996 Chevrolet C2500
1996 Chevrolet C3500
1996 Chevrolet G30
1996 Chevrolet P30
1996 GMC G3500
1996 GMC P3500
1997 Chevrolet C2500
1997 Chevrolet C3500
1997 Chevrolet P30
1997 GMC P3500
1998 Chevrolet C2500
1998 Chevrolet C3500
1999 Chevrolet C2500
1999 Chevrolet C3500
2000 Chevrolet C2500
2000 Chevrolet C3500
| Top Compression Ring Thickness: 5/64 in |
| Second Compression Ring Thickness: 5/64 in |
| Oil Ring Thickness: 3/16 in |
| Piston Pin Outside Diameter: 0.9898 |
| Bore Diameter: 4.250 |
| Compression Height: 1.625 |
| Aaiaid Part Number: BBPTP3098(8)STD |
| Part Number: P3098(8)STD |
| Brand Aaia: BBPT |
