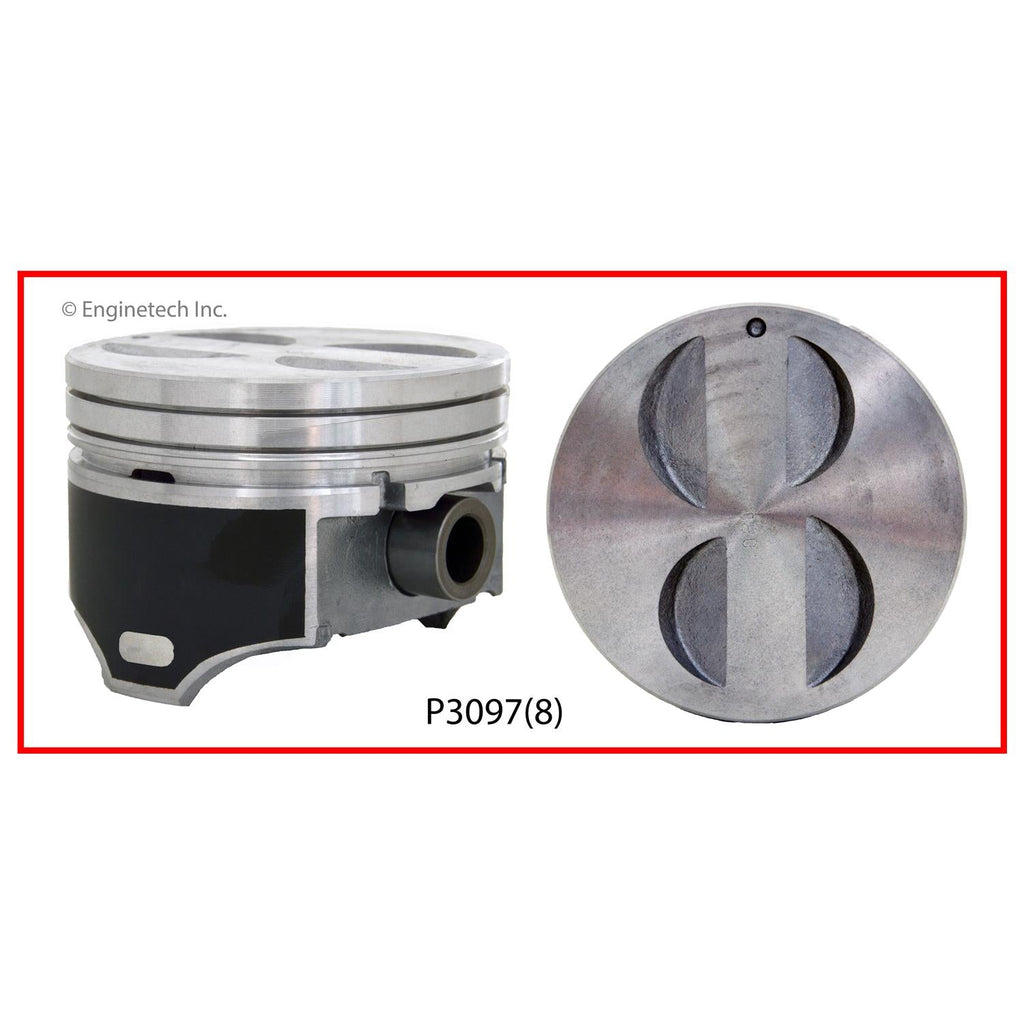

Enginetech P3097(8)020 Engine Piston Set Without Rings for Ford Vehicles
Regular price $197.99
Engine Piston Set - without Rings
The Enginetech P3097(8)020 Engine Piston Set is a high-quality component designed specifically for several Ford models, including the Ford Bronco, Explorer, and F-150 trucks from the mid-1990s to 2000. Engine rebuilders and mechanics can rely on this piston set for precise fit and performance, thanks to matched weights that ensure perfect balance within the engine. The set features a bore diameter of 4.000 inches and a compression height of 1.595 inches, making it suitable for a range of rebuild applications. Constructed with durable materials, this piston set does not include rings, allowing you to select the appropriate rings based on your specific needs or existing components.
Features:
- Matched weights for optimal engine balance and smooth operation
- Top and second compression ring thickness: 1.50 mm for reliable sealing and compression
- Oil ring thickness: 4.00 mm to ensure proper lubrication and oil control
- Piston pin outside diameter: 0.9155 inches for secure attachment to the connecting rod
- Designed to fit 1996-2000 Ford models including Bronco, Explorer, F-150, and F-250 trucks
Fits Following Models:
1996 Ford Bronco
1996 Ford E-150 Econoline
1996 Ford E-150 Econoline Club Wagon
1996 Ford Explorer
1996 Ford F-150
1996 Ford F-250
1997 Ford Explorer
1997 Mercury Mountaineer
1998 Ford Explorer
1998 Mercury Mountaineer
1999 Ford Explorer
1999 Mercury Mountaineer
2000 Ford Explorer
2000 Mercury Mountaineer
| Top Compression Ring Thickness: 1.50 mm |
| Second Compression Ring Thickness: 1.50 mm |
| Oil Ring Thickness: 4.00 mm |
| Piston Pin Outside Diameter: 0.9155 |
| Bore Diameter: 4.000 |
| Compression Height: 1.595 |
| Aaiaid Part Number: BBPTP3097(8)020 |
| Part Number: P3097(8)020 |
| Brand Aaia: BBPT |
- Performance Part offers a Limited Warranty to entire products to be free from defects in workmanship and material under normal service conditions for a period of 90 days whichever occurs from the original date of delivery of the good.
- The warranty is not transferable, is valid to the original purchaser, and is limited to the replacement of defective products only.
- This Limited Warranty does not cover labor, damage from accidents, alterations, misuse, or modifications not intended by the manufacturer, and other expenses such as towing loading fluids, oils, or car rentals.
- All warranty claims must be pre-authorized and returned prepaid to Performance Part for inspection and approval.
- No exchanges will be made for any product that has been damaged, misused, or improperly installed. We always recommend professional installation of our products.
- The buyer assumes the risk of damage caused by improper installation.
- All disputes arising from the transaction shall be resolved by a court of competent jurisdiction within Los Angeles County, California.
