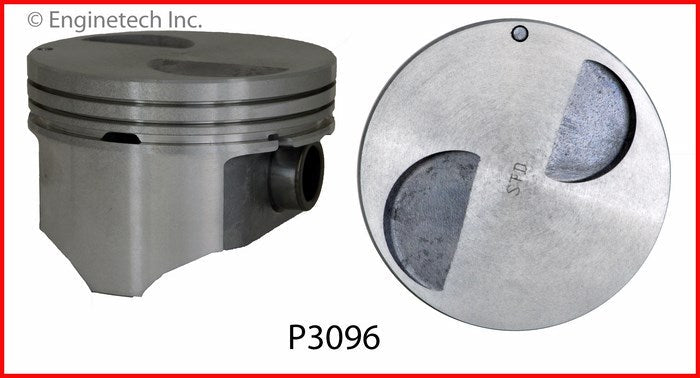

Enginetech P3096(4).50 Engine Piston Set Without Rings for Ford Ranger 1995-1997
Regular price $143.99
Engine Piston Set - without Rings
The Enginetech P3096(4).50 engine piston set is designed for precise performance and durability in Ford Ranger models from 1995 to 1997. Crafted for engine rebuilders, this piston set features matched weights for optimal balance, ensuring smooth operation and reduced vibrations. The set includes pistons engineered with a bore diameter of 3.780 inches and a compression height of 1.335 inches, tailored to meet the specifications of select Ford Ranger engines. Each piston is constructed with high-quality materials to withstand the stresses of engine operation, delivering reliability and consistent performance over time. Please note that this set does not include piston rings, offering flexibility for custom ring installation based on your specific engine rebuild requirements. The piston pin outside diameter measures 0.9122 inches, ensuring proper fitment and secure attachment within the engine assembly. This product is part of Enginetech’s comprehensive line of high-quality engine components, trusted by professional engine builders nationwide. Designed for easy installation and long-term performance, the P3096(4).50 piston set is an excellent choice for restoring or enhancing your Ford Ranger's engine. Whether you're performing a complete rebuild or replacing worn components, this piston set provides the quality and precision needed for a successful engine project.
Features:
- Matched weights for perfect balance ensuring smooth engine operation
- High-quality construction designed for durability and reliability
- Bore diameter of 3.780 inches to fit specific Ford Ranger engines
- Compression height of 1.335 inches for optimal performance
- Piston pin outside diameter of 0.9122 inches for secure attachment
- Includes pistons without rings, allowing custom ring installation
- Engineered specifically for 1995-1997 Ford Ranger models
- Part of Enginetech’s trusted line of engine components for professional rebuilds
Fits Following Models:
1995 Ford Ranger
1996 Ford Ranger
1997 Ford Ranger
| Top Compression Ring Thickness: 1.50 mm |
| Second Compression Ring Thickness: 1.50 mm |
| Oil Ring Thickness: 3.00 mm |
| Piston Pin Outside Diameter: 0.9122 |
| Bore Diameter: 3.780 |
| Compression Height: 1.335 |
| Aaiaid Part Number: BBPTP3096(4).50 |
| Part Number: P3096(4).50 |
| Brand Aaia: BBPT |
