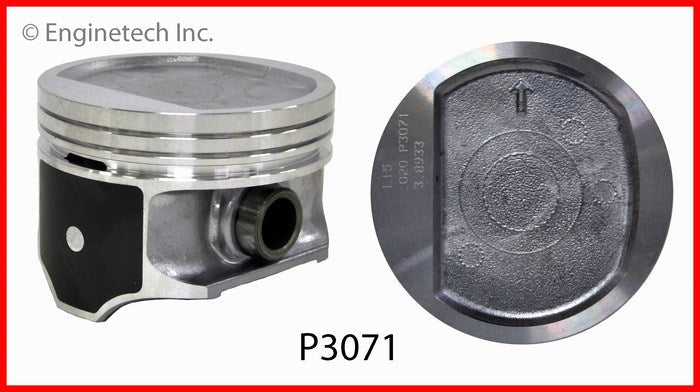

Engine Piston Set - without Rings

The Enginetech P3071(4)020 engine piston set is designed for precise performance and durability in your vehicle's engine. Crafted with matched weights for perfect balance, this piston set ensures smooth operation and optimal power output. It is specifically engineered for select Dodge Dakota models from 1996 to 2002 and Jeep Cherokee models from 1998 to 2000, providing a reliable solution for engine rebuilding projects.
Constructed without rings, this piston set features a top compression ring thickness of 1.50 mm, a second compression ring thickness of 1.50 mm, and an oil ring thickness of 4.00 mm. The piston pin outside diameter measures 0.931 inches, making it compatible with engines requiring a bore diameter of 3.875 inches. With a compression height of 1.592 inches, these pistons are designed to restore engine compression and performance.
Enginetech, a family-owned company since 1982, is renowned for high-quality engine parts tailored for engine rebuilders. Their products are engineered specifically for durability and precision, ensuring that every rebuild meets strict standards. This piston set is ideal for those seeking to replace worn or damaged pistons, providing a cost-effective solution without compromising quality. Whether you're performing a complete engine overhaul or replacing individual components, the P3071(4)020 pistons deliver dependable performance and long-lasting results.

Features:

• Matched weights for perfect engine balance

• Top Compression Ring Thickness: 1.50 mm

• Second Compression Ring Thickness: 1.50 mm

• Oil Ring Thickness: 4.00 mm

• Piston Pin Outside Diameter: 0.931 inches

• Bore Diameter: 3.875 inches

• Compression Height: 1.592 inches

• Engine compatible with 1996-2002 Dodge Dakota and 1998-2000 Jeep Cherokee models

• Engineered by Enginetech for high durability and performance

Fits Following Models:
1996 Dodge Dakota
1996 Jeep Cherokee
1997 Dodge Dakota
1997 Jeep Cherokee
1997 Jeep TJ
1997 Jeep Wrangler
1998 Dodge Dakota
1998 Jeep Cherokee
1998 Jeep TJ
1998 Jeep Wrangler
1999 Dodge Dakota
1999 Jeep Cherokee
1999 Jeep TJ
1999 Jeep Wrangler
2000 Dodge Dakota
2000 Jeep Cherokee
2000 Jeep TJ
2000 Jeep Wrangler
2001 Dodge Dakota
2001 Jeep TJ
2001 Jeep Wrangler
2002 Dodge Dakota
2002 Jeep TJ
2002 Jeep Wrangler
