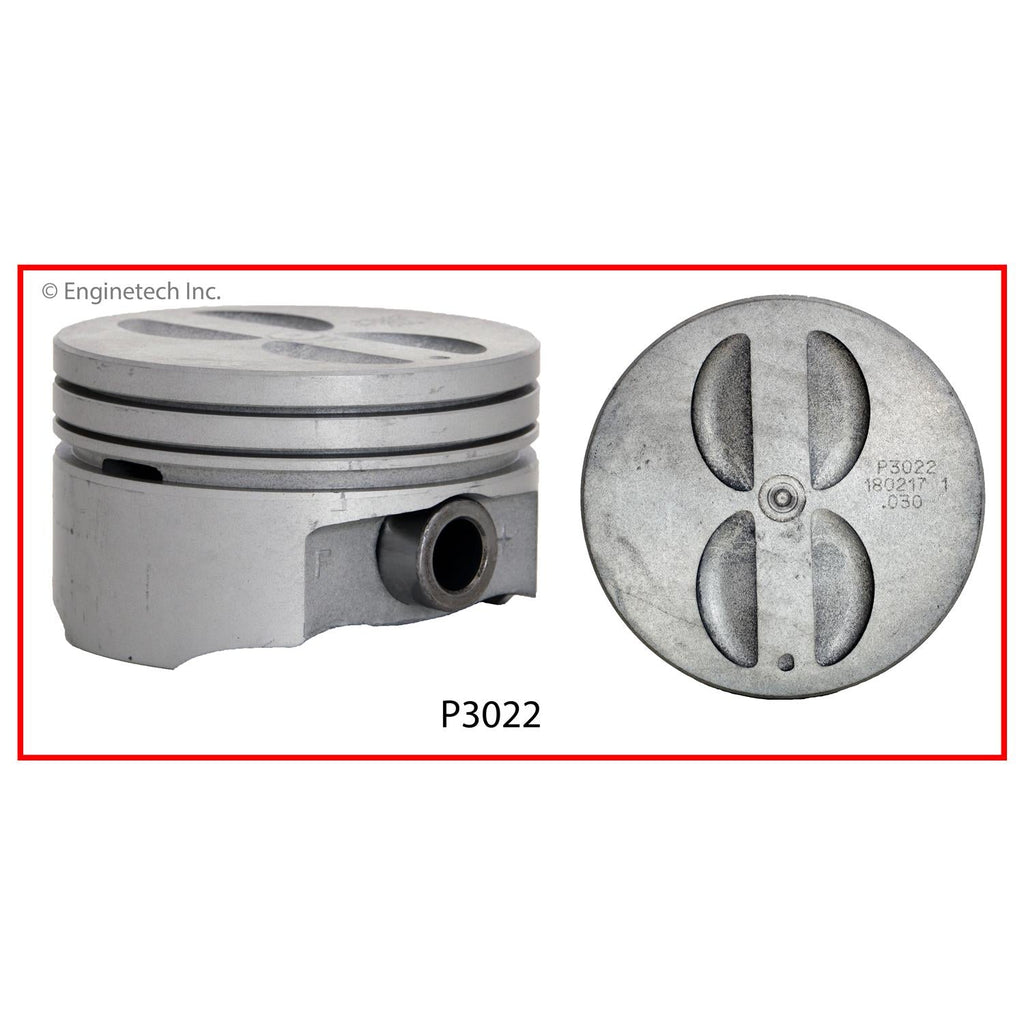

Enginetech P3022(8)040 Engine Piston Set Without Rings for Chevrolet, Buick, Cadillac (1994-1996)
Regular price $199.99
Engine Piston Set - without Rings
The Enginetech P3022(8)040 engine piston set is designed to deliver high performance and durability for a variety of 1994 to 1996 Chevrolet, Buick, and Cadillac models. Crafted with precision, this piston set ensures a perfect fit and optimal engine operation. It is ideal for engine rebuilders and technicians seeking reliable components that meet OEM standards. The set includes matched pistons with balanced weights, promoting smooth engine performance and longevity. Each piston features a compression height of 1.540 inches and bore diameter of 4.000 inches, providing a precise match to the specified engine specifications. The pistons are engineered to work seamlessly with the engine's existing components, ensuring efficient combustion and power delivery. The set is compatible with several chassis and body styles, making it versatile for various rebuild projects.
The pistons are manufactured with specific dimensions to optimize sealing and reduce wear, with top compression ring thickness of 2.00 mm, second compression ring thickness of 1.50 mm, and oil ring thickness of 4.00 mm. The piston pin outside diameter measures 0.9275 inches, allowing for secure attachment within the engine assembly. This product does not include rings, giving rebuilders the flexibility to use their preferred ring sets. Trust Enginetech's commitment to quality and customer satisfaction, backed by decades of experience in engine components, to ensure your engine rebuild is successful and long-lasting.
Features:
- Matched piston weights for balanced engine performance
- Top compression ring thickness: 2.00 mm for optimal sealing
- Second compression ring thickness: 1.50 mm for reliable compression
- Oil ring thickness: 4.00 mm for effective lubrication
- Piston pin outside diameter: 0.9275 inches for secure fit
- Bore diameter: 4.000 inches matching OEM specifications
- Compression height: 1.540 inches for proper piston positioning
- Engine compatibility with 1994-1996 Chevrolet, Buick, and Cadillac models
- Engine rebuilders can customize with their preferred piston rings
- Engineered for durability and precise fit in high-performance applications
Fits Following Models:
1990 Chevrolet Camaro
1990 Chevrolet Caprice
1990 Chevrolet Corvette
1990 Pontiac Firebird
1991 Chevrolet Camaro
1991 Chevrolet Caprice
1991 Chevrolet Corvette
1991 Pontiac Firebird
1992 Chevrolet Camaro
1992 Chevrolet Caprice
1992 Chevrolet Corvette
1992 Pontiac Firebird
1993 Chevrolet Camaro
1993 Chevrolet Caprice
1993 Chevrolet Corvette
1993 Pontiac Firebird
1994 Buick Commercial Chassis
1994 Buick Roadmaster
1994 Cadillac Commercial Chassis
1994 Cadillac Fleetwood
1994 Chevrolet Camaro
1994 Chevrolet Caprice
1994 Chevrolet Commercial Chassis
1994 Chevrolet Corvette
1994 Chevrolet Impala
1994 Pontiac Firebird
1995 Buick Commercial Chassis
1995 Buick Roadmaster
1995 Cadillac Commercial Chassis
1995 Cadillac Fleetwood
1995 Chevrolet Camaro
1995 Chevrolet Caprice
1995 Chevrolet Corvette
1995 Chevrolet Impala
1995 Pontiac Firebird
1996 Buick Commercial Chassis
1996 Buick Roadmaster
1996 Cadillac Commercial Chassis
1996 Cadillac Fleetwood
1996 Chevrolet Camaro
1996 Chevrolet Caprice
1996 Chevrolet Corvette
1996 Chevrolet Impala
1996 Pontiac Firebird
1997 Chevrolet Camaro
1997 Pontiac Firebird
| Top Compression Ring Thickness: 2.00 mm |
| Second Compression Ring Thickness: 1.50 mm |
| Oil Ring Thickness: 4.00 mm |
| Piston Pin Outside Diameter: 0.9275 |
| Bore Diameter: 4.000 |
| Compression Height: 1.540 |
| Aaiaid Part Number: BBPTP3022(8)040 |
| Part Number: P3022(8)040 |
| Brand Aaia: BBPT |
