Engine Piston Set - without Rings

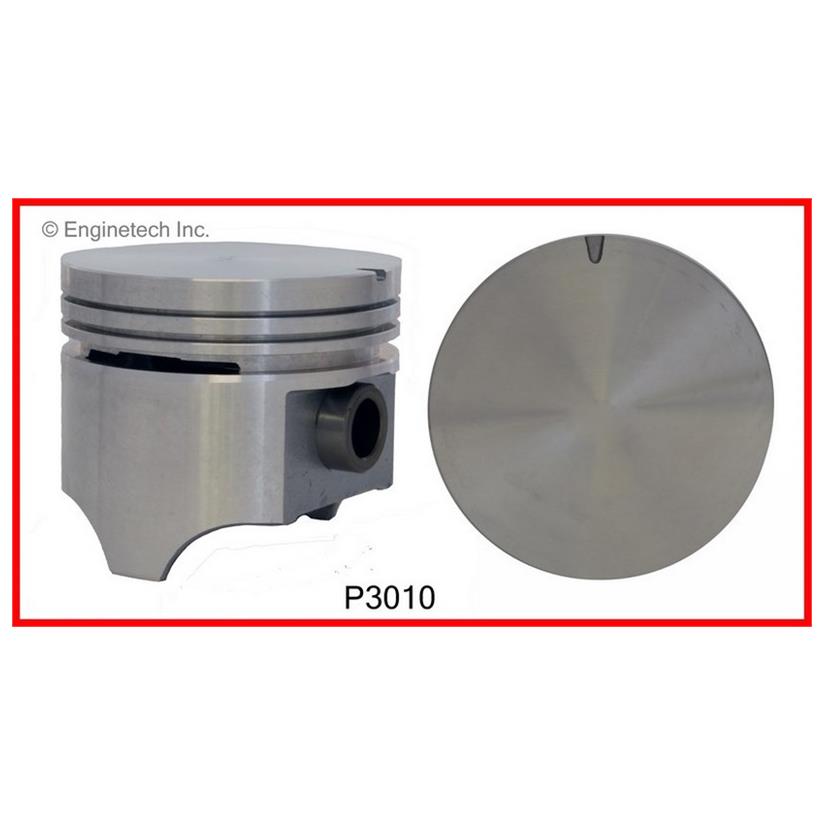

The Enginetech P3010(6)STD Engine Piston Set is designed for precise performance and reliable operation in various classic vehicles. This piston set is engineered specifically for use in engines found in models like the 1989-1991 Isuzu Trooper and 1984-1986 Jeep Cherokee, Comanche, and Wagoneer. Crafted with matched weights, these pistons ensure perfect balance within the engine, promoting smooth operation and longevity. The set includes pistons without rings, giving rebuilders flexibility to select the appropriate rings for their specific application. The pistons feature a bore diameter of 3.504 inches, with a top compression ring thickness of 1.50 mm, a second compression ring thickness of 2.00 mm, and an oil ring thickness of 4.75 mm. The piston pin outside diameter measures 0.9055 inches, ensuring a secure fit within the engine's connecting rods. Designed with high-quality materials, these pistons are ideal for engine rebuild projects that demand precision and durability. Whether restoring a vintage vehicle or performing a rebuild, the Enginetech P3010(6)STD set provides a reliable foundation for a high-performance engine. As part of Enginetech’s commitment to quality, these pistons are manufactured to meet strict specifications, ensuring compatibility and optimal performance in your engine rebuild process.

Features:

• Matched weights for perfect engine balance

• Designed for specific models including Isuzu Trooper and Jeep Cherokee, Comanche, Wagoneer

• Bore diameter of 3.504 inches for precise fitting

• Top compression ring thickness: 1.50 mm for optimal sealing

• Second compression ring thickness: 2.00 mm for balanced compression

• Oil ring thickness: 4.75 mm for effective oil control

• Piston pin outside diameter: 0.9055 inches for secure connection

• Engine pistons without rings, allowing customization during rebuild

Fits Following Models:
1980 Buick Skylark
1980 Chevrolet Citation
1980 Oldsmobile Omega
1980 Pontiac Phoenix
1981 Buick Skylark
1981 Chevrolet Citation
1981 Oldsmobile Omega
1981 Pontiac Phoenix
1982 Buick Skylark
1982 Chevrolet Camaro
1982 Chevrolet Celebrity
1982 Chevrolet Citation
1982 Chevrolet S10
1982 GMC S15
1982 Oldsmobile Omega
1982 Pontiac 6000
1982 Pontiac Firebird
1982 Pontiac Phoenix
1983 Buick Skylark
1983 Chevrolet Camaro
1983 Chevrolet Celebrity
1983 Chevrolet Citation
1983 Chevrolet S10
1983 Chevrolet S10 Blazer
1983 GMC S15
1983 GMC S15 Jimmy
1983 Oldsmobile Omega
1983 Pontiac 6000
1983 Pontiac Firebird
1983 Pontiac Phoenix
1984 Buick Skylark
1984 Chevrolet Camaro
1984 Chevrolet Celebrity
1984 Chevrolet Citation II
1984 Chevrolet S10
1984 Chevrolet S10 Blazer
1984 GMC S15
1984 GMC S15 Jimmy
1984 Jeep Cherokee
1984 Jeep Wagoneer
1984 Oldsmobile Omega
1984 Pontiac 6000
1984 Pontiac Firebird
1984 Pontiac Phoenix
1985 Buick Skylark
1985 Cadillac Cimarron
1985 Chevrolet Camaro
1985 Chevrolet Cavalier
1985 Chevrolet Celebrity
1985 Chevrolet Citation II
1985 Chevrolet S10
1985 Chevrolet S10 Blazer
1985 GMC S15
1985 GMC S15 Jimmy
1985 Jeep Cherokee
1985 Jeep Wagoneer
1985 Oldsmobile Firenza
1985 Pontiac 6000
1985 Pontiac Fiero
1985 Pontiac Firebird
1986 Buick Century
1986 Cadillac Cimarron
1986 Chevrolet Camaro
1986 Chevrolet Cavalier
1986 Chevrolet Celebrity
1986 Jeep Cherokee
1986 Jeep Comanche
1986 Jeep Wagoneer
1986 Oldsmobile Cutlass Ciera
1986 Oldsmobile Firenza
1986 Pontiac 6000
1986 Pontiac Fiero
1986 Pontiac Firebird
1989 Isuzu Trooper
1990 Isuzu Trooper
1991 Isuzu Trooper
