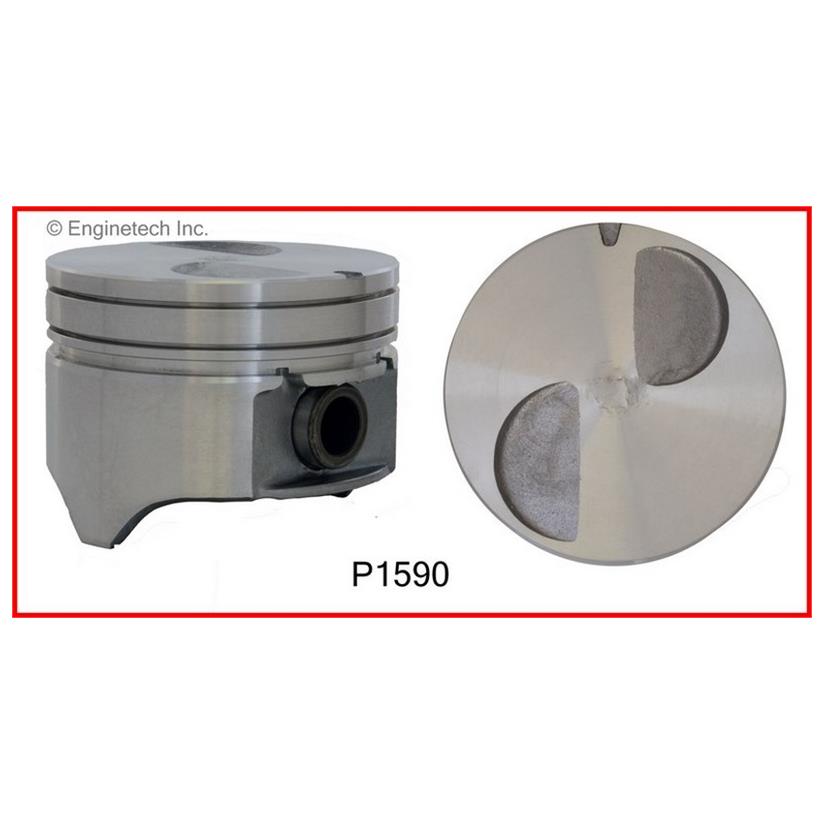

Enginetech P1590(4)020 Engine Piston Set Without Rings for Ford Mustang and Ranger
Regular price $135.99
Engine Piston Set - without Rings
The Enginetech P1590(4)020 engine piston set is designed for precise performance and durability in select Ford models. Crafted with matched weights, this piston set ensures optimal balance, reducing engine vibrations and enhancing overall engine longevity. Constructed with high-quality materials, it features a top compression ring thickness of 1.50 mm, a second compression ring thickness of 1.50 mm, and an oil ring thickness of 4.00 mm, providing effective sealing and oil control under demanding conditions. The piston pin outside diameter measures 0.9122 inches, accommodating compatible connecting rods for seamless installation. With a bore diameter of 3.780 inches and a compression height of 1.578 inches, this set is engineered to match the specifications of various Ford Mustang and Ranger engines from the late 1980s to early 1990s.
Features:
- Matched weights for perfect engine balance
- Top and second compression rings: 1.50 mm thickness for reliable sealing
- Oil ring: 4.00 mm thickness for optimal oil control
- Piston pin outside diameter: 0.9122 inches for secure fit
- Designed for Ford Mustang and Ranger models from 1989 to 1993
Fits Following Models:
1989 Ford Mustang
1989 Ford Ranger
1990 Ford Mustang
1990 Ford Ranger
1991 Ford Mustang
1991 Ford Ranger
1992 Ford Mustang
1992 Ford Ranger
1993 Ford Mustang
1993 Ford Ranger
1994 Ford Ranger
| Top Compression Ring Thickness: 1.50 mm |
| Second Compression Ring Thickness: 1.50 mm |
| Oil Ring Thickness: 4.00 mm |
| Piston Pin Outside Diameter: 0.9122 |
| Bore Diameter: 3.780 |
| Compression Height: 1.578 |
| Aaiaid Part Number: BBPTP1590(4)020 |
| Part Number: P1590(4)020 |
| Brand Aaia: BBPT |
