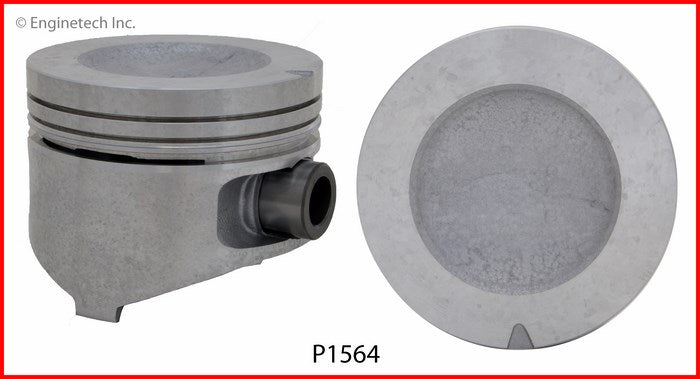

Enginetech P1564(6)STD Engine Piston Set Without Rings for Ford Bronco II and Ranger
Regular price $197.99
Engine Piston Set - without Rings
The Enginetech P1564(6)STD engine piston set is a high-quality replacement component designed to restore optimal performance to your 1986-1990 Ford Bronco II and Ranger models. Manufactured by Enginetech, a trusted name in engine parts since 1982, this piston set offers precise engineering and reliable durability for both professional rebuilders and DIY enthusiasts. Each piston is crafted to match original specifications, ensuring seamless fit and function in your engine build or repair.
The piston set features matched weights for perfect balance, promoting smooth operation and reducing vibrations. The top compression ring thickness measures 1.60 mm, while the second compression ring is 1.75 mm thick, providing effective sealing and compression. An oil ring with a thickness of 3.50 mm ensures proper lubrication and oil control. The piston includes a piston pin outside diameter of 0.9448 inches and a bore diameter of 3.661 inches, with a compression height of 1.527 inches, aligning with OEM standards for optimal performance.
Designed specifically for 1986-1990 Ford Bronco II and Ranger models, this piston set is an essential component for engine rebuilds, offering consistent quality and performance. Whether replacing worn parts or upgrading your engine, this piston set provides the durability and precision needed for a successful rebuild. Trust Enginetech to supply the parts that keep your engine running smoothly and efficiently for years to come.
Features:
- Matched weights for balanced engine operation
- Top compression ring thickness: 1.60 mm
- Second compression ring thickness: 1.75 mm
- Oil ring thickness: 3.50 mm
- Piston pin outside diameter: 0.9448 inches
- Bore diameter: 3.661 inches
- Compression height: 1.527 inches
- Engine designed for 1986-1990 Ford Bronco II and Ranger
Fits Following Models:
1986 Ford Bronco II
1986 Ford Ranger
1987 Ford Bronco II
1987 Ford Ranger
1988 Ford Bronco II
1988 Ford Ranger
1988 Merkur Scorpio
1989 Ford Bronco II
1989 Ford Ranger
1989 Merkur Scorpio
1990 Ford Bronco II
1990 Ford Ranger
1991 Ford Ranger
1992 Ford Ranger
| Top Compression Ring Thickness: 1.60 mm |
| Second Compression Ring Thickness: 1.75 mm |
| Oil Ring Thickness: 3.50 mm |
| Piston Pin Outside Diameter: 0.9448 |
| Bore Diameter: 3.661 |
| Compression Height: 1.527 |
| Aaiaid Part Number: BBPTP1564(6)STD |
| Part Number: P1564(6)STD |
| Brand Aaia: BBPT |
